3. Keyboard-controller cable 4. Touchpad cable
5. Left power-adapter port cable 6. Audio daughter-board cable

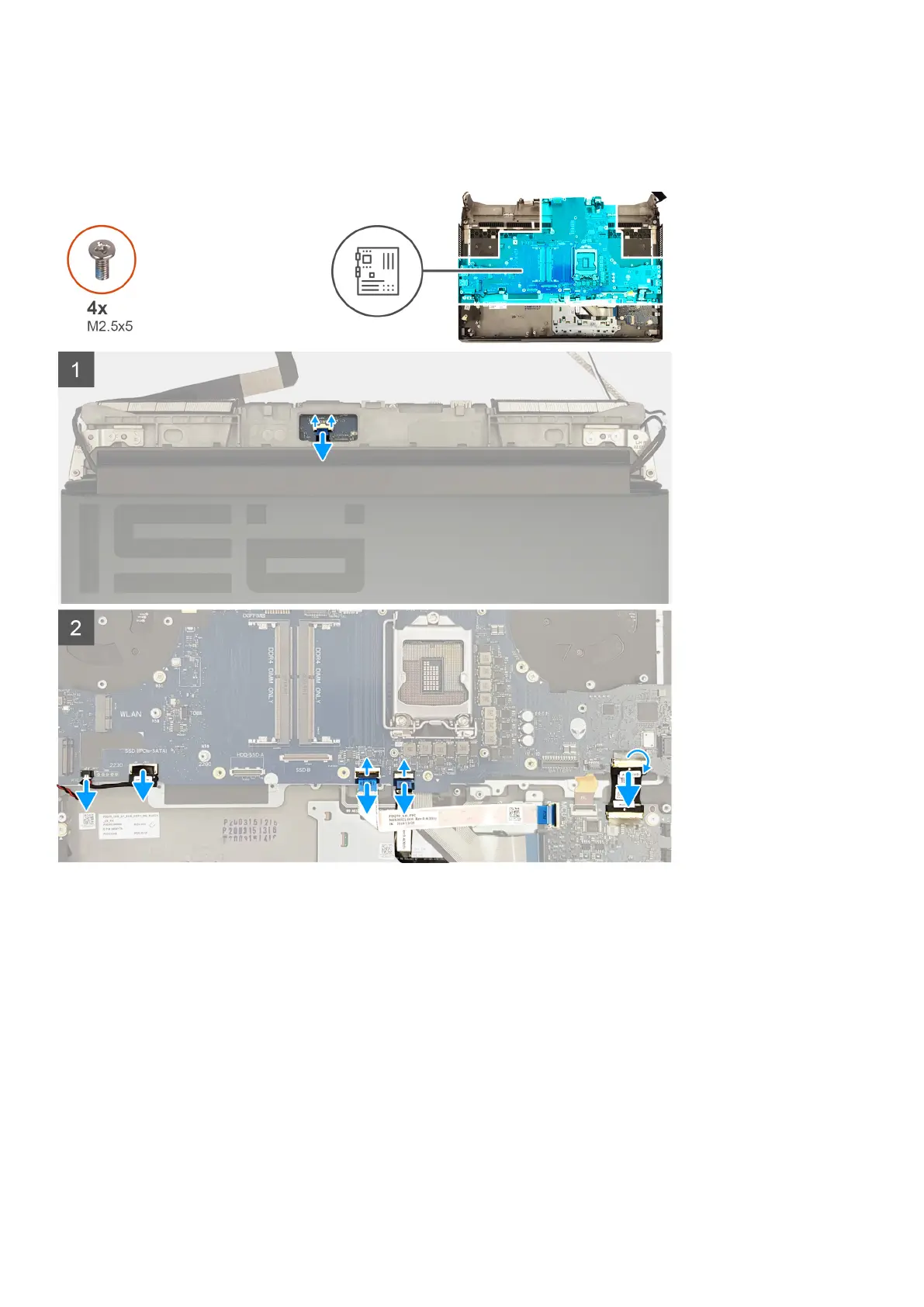

The following image indicates the location of the system board and provides a visual representation of the removal procedure.
67
