5. Remove the memory module.
6. Remove the single-graphics card.
7. Remove the M.2 2230 solid-state drive or the M.2 2280 solid-state drive in SSD slot one or slot two, as applicable.
8. Remove the wireless card.
9. Remove the
processor liquid-cooling assembly or processor fan and heat-sink assembly, as applicable.
10.Remove the processor.
11. Remove the VR heat sink.
About this task

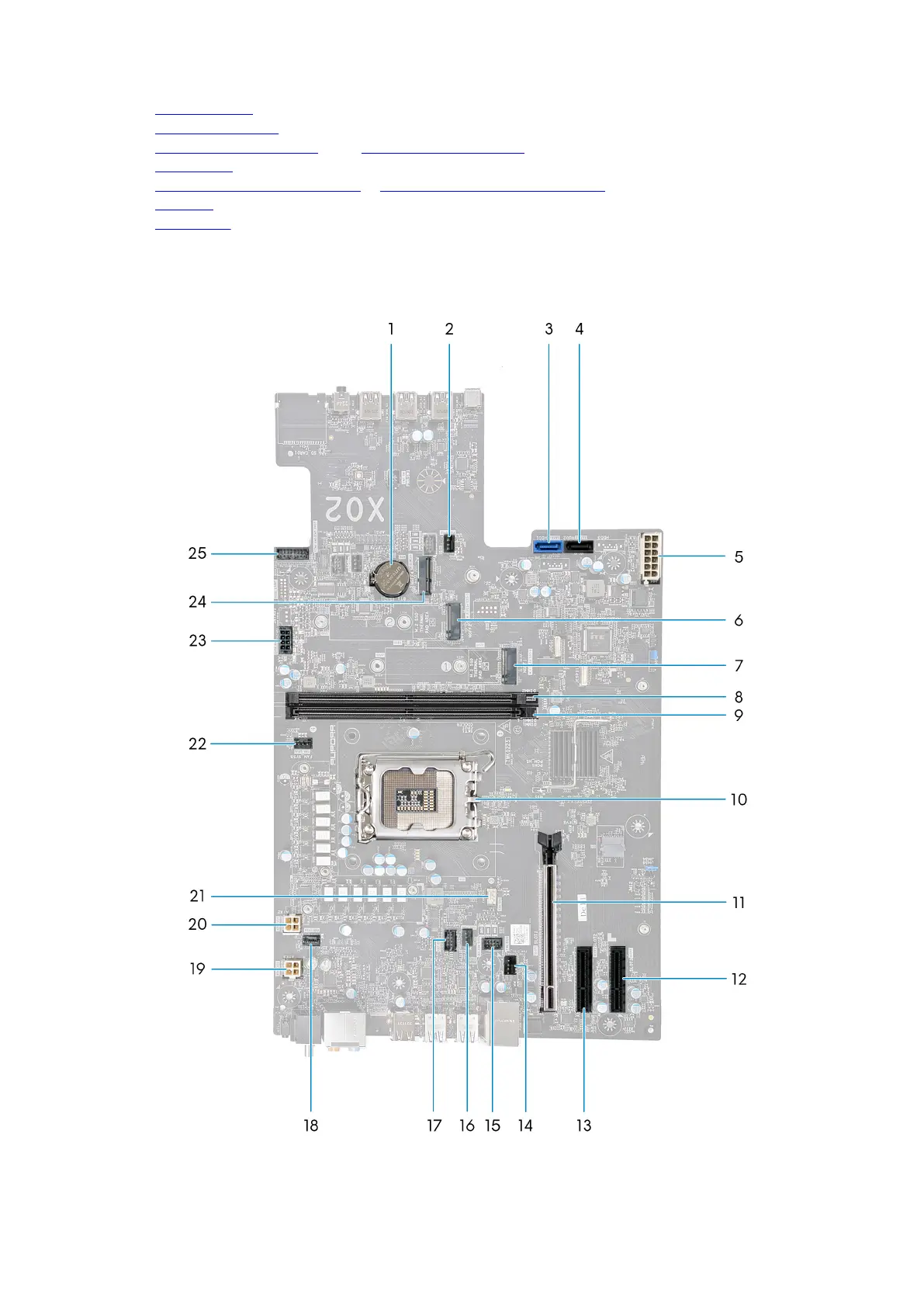

The following image indicates the connectors on your system board.
1. Coin-cell battery 2. Lower front-chassis fan connector (FAN_SYS2)
