Procedure

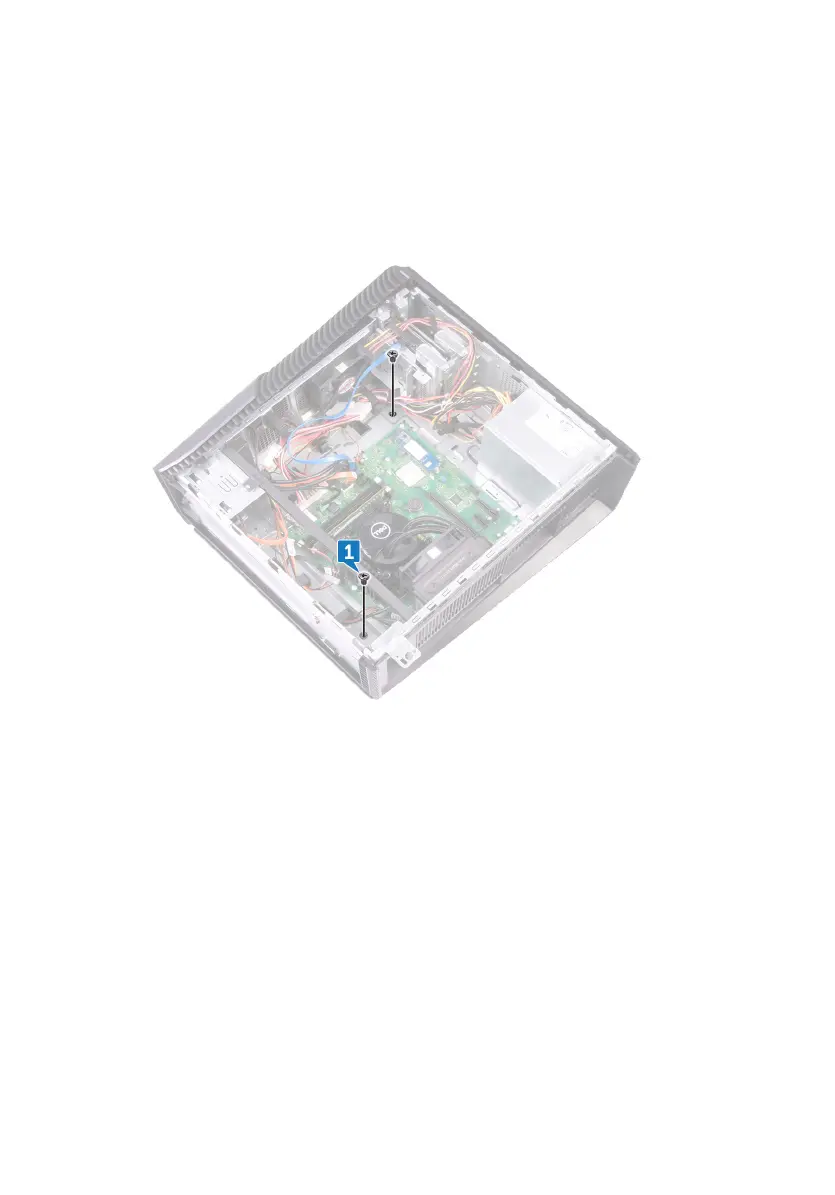

1 Lay the computer on the left side and remove the two screws (M3x5) that

secure the left-side cover to the chassis.

2 Carefully turn over the computer.

107
