Procedure

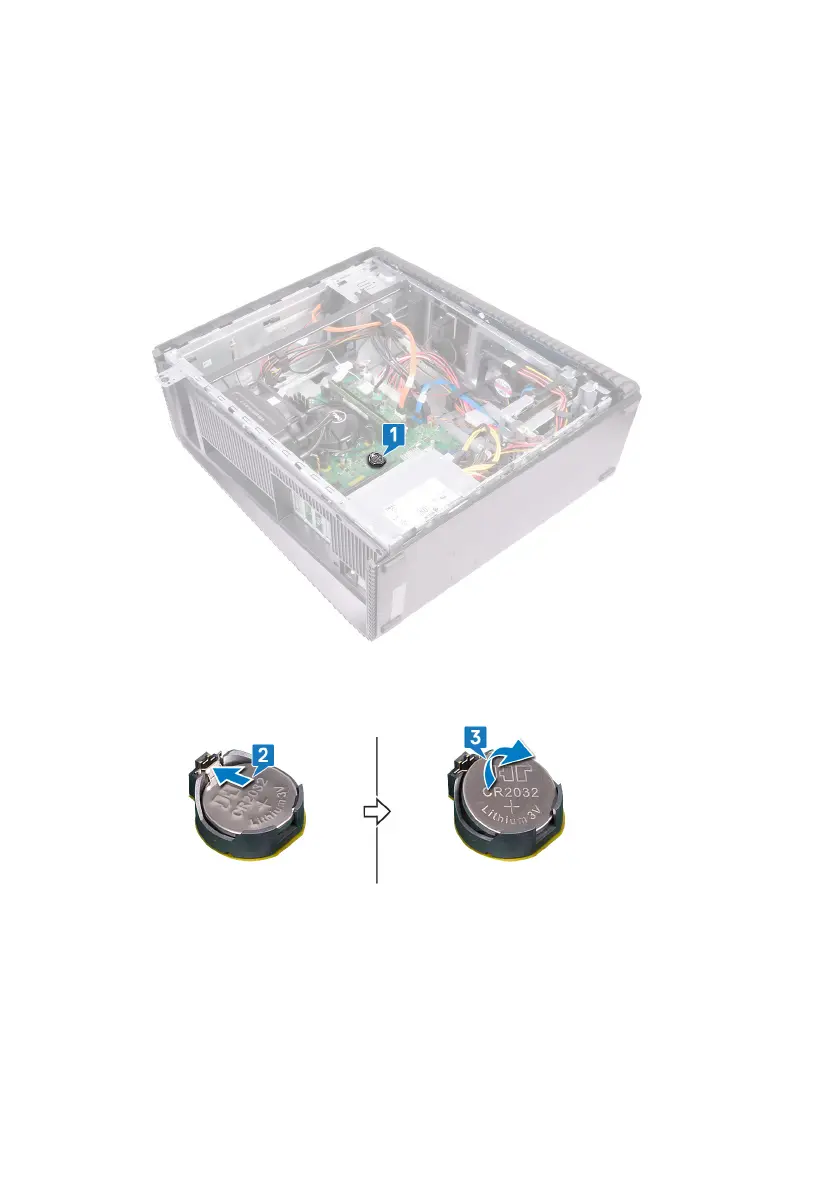

1 Lay the computer on the left side and locate the coin-cell battery on the system

board.

2 Press the tab on the coin-cell battery socket.

3 Release the coin-cell battery out of its socket.
