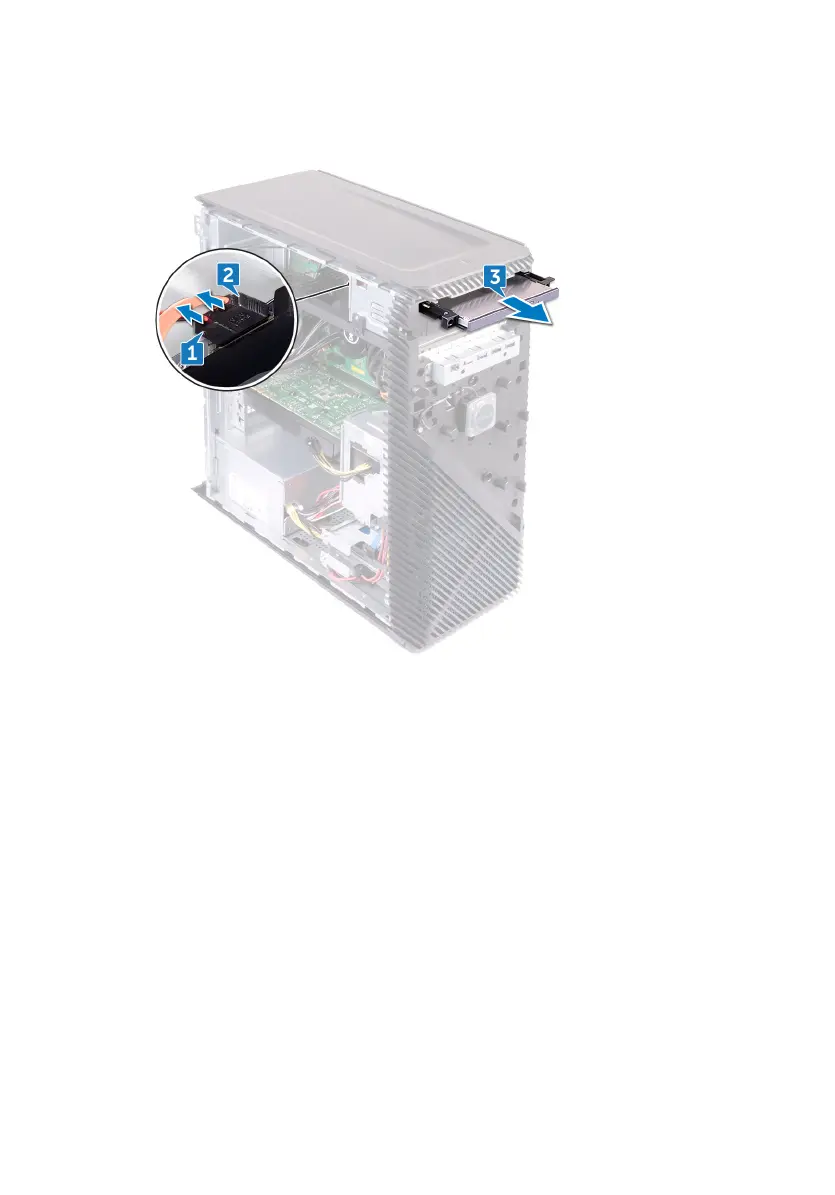

3 Pull to slide the slim optical-drive assembly out through the front of the

computer.

4 Using your nger tips, pry the slim optical-drive bracket from the optical drive.
