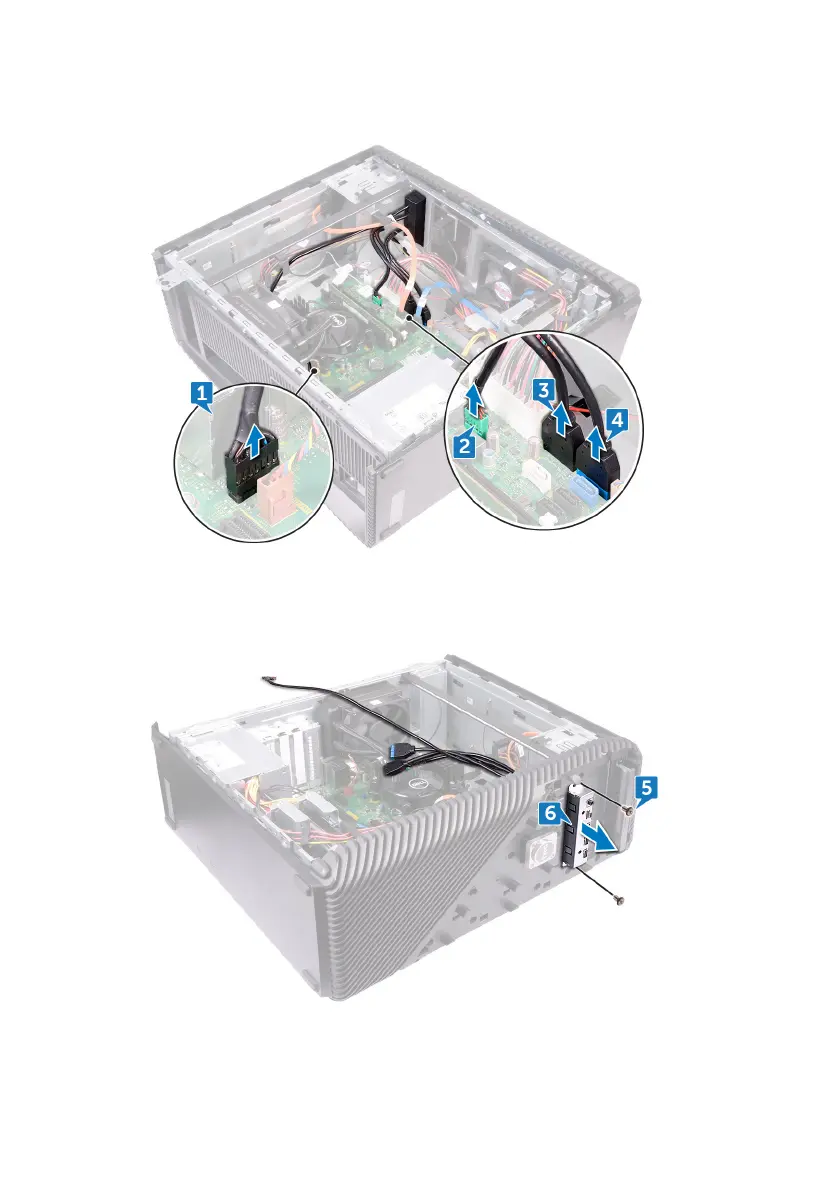

4 Disconnect the USB 3.0 cable from the system board.
5 Remove the two screws (M3x5) that secures the front I/O panel to the chassis.
6 Pull out the front I/O panel along with the cables, through the front of the
computer.
39
