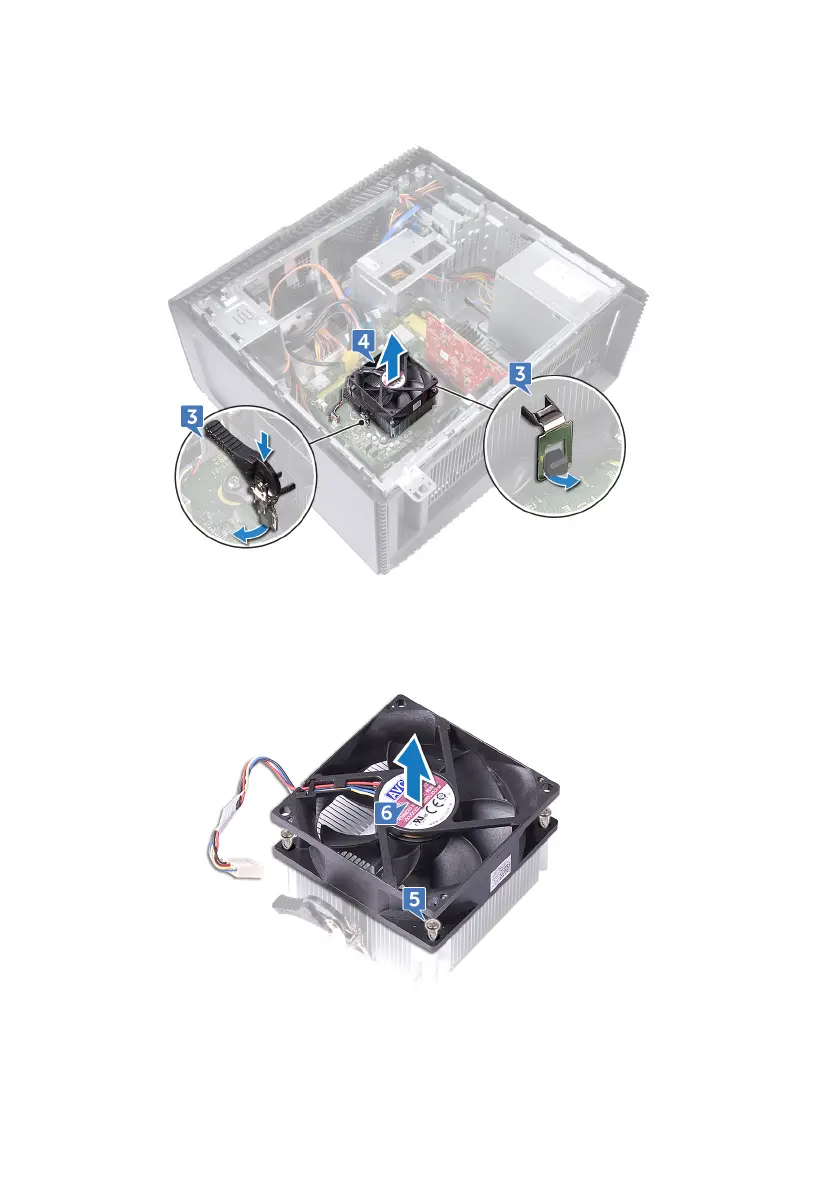

4 Lift the processor fan and heat-sink assembly o the system board.

5 Remove the four screws (M3x7.26) that secures the processor fan to the heat-

sink assembly.

6 Lift the processor fan from the heat-sink.
