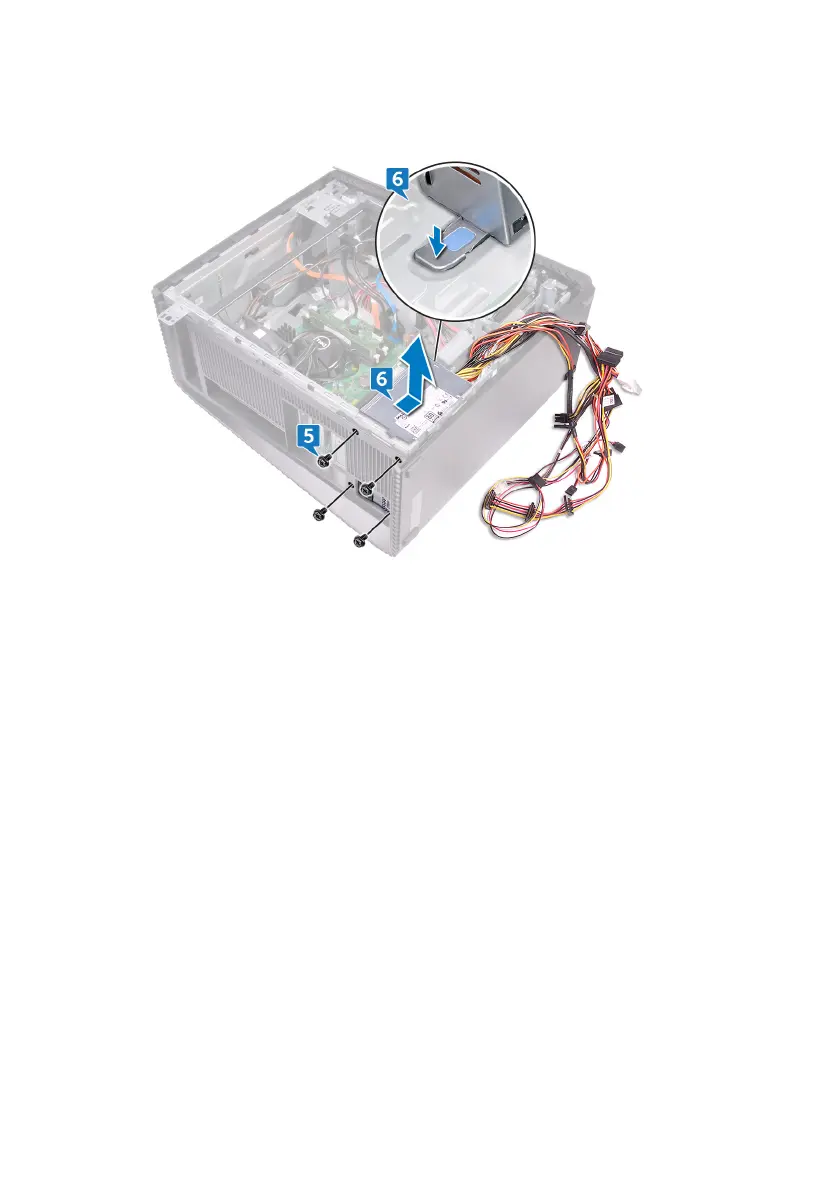

6 Press the clamp and slide the power-supply unit towards the front of the chassis

and lift the power-supply unit, along with the cables, o the chassis.
