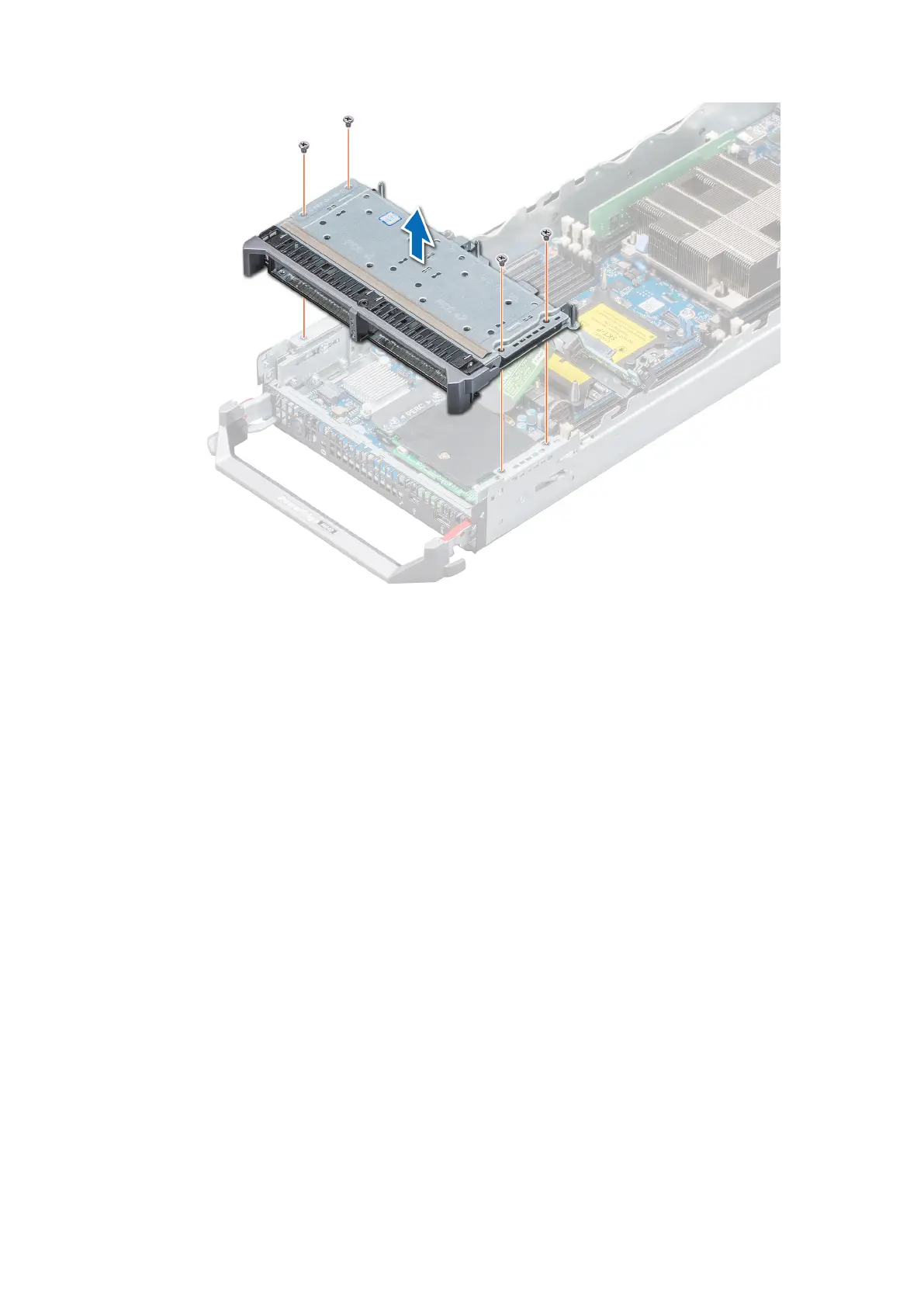

Figure 21. Removing the drive cage
Next steps
Install the drive cage
Installing the drive cage
Prerequisites
Follow the safety guidelines listed in Safety instructions.
Steps
1. Align the screw holes on the drive cage with the screw holes on the system.
2. Lower the drive cage into the system until the drive cage is seated in place.
3. Using the Phillips #1 screwdriver, replace the screws to secure the drive cage to the system.
28
Installing and removing system components
