Deploying FCoE (FIP Snooping) on Dell Force 10 MXL
22
This is what the downlink (server facing port) additional settings should look like.
These additional command line “dcbx version CEE” will configure the port to only use the CEE version
of DCBX and not negotiate other values. This setting is currently necessary for the Intel x520 CNA for
use with FCoE and applicable storage.

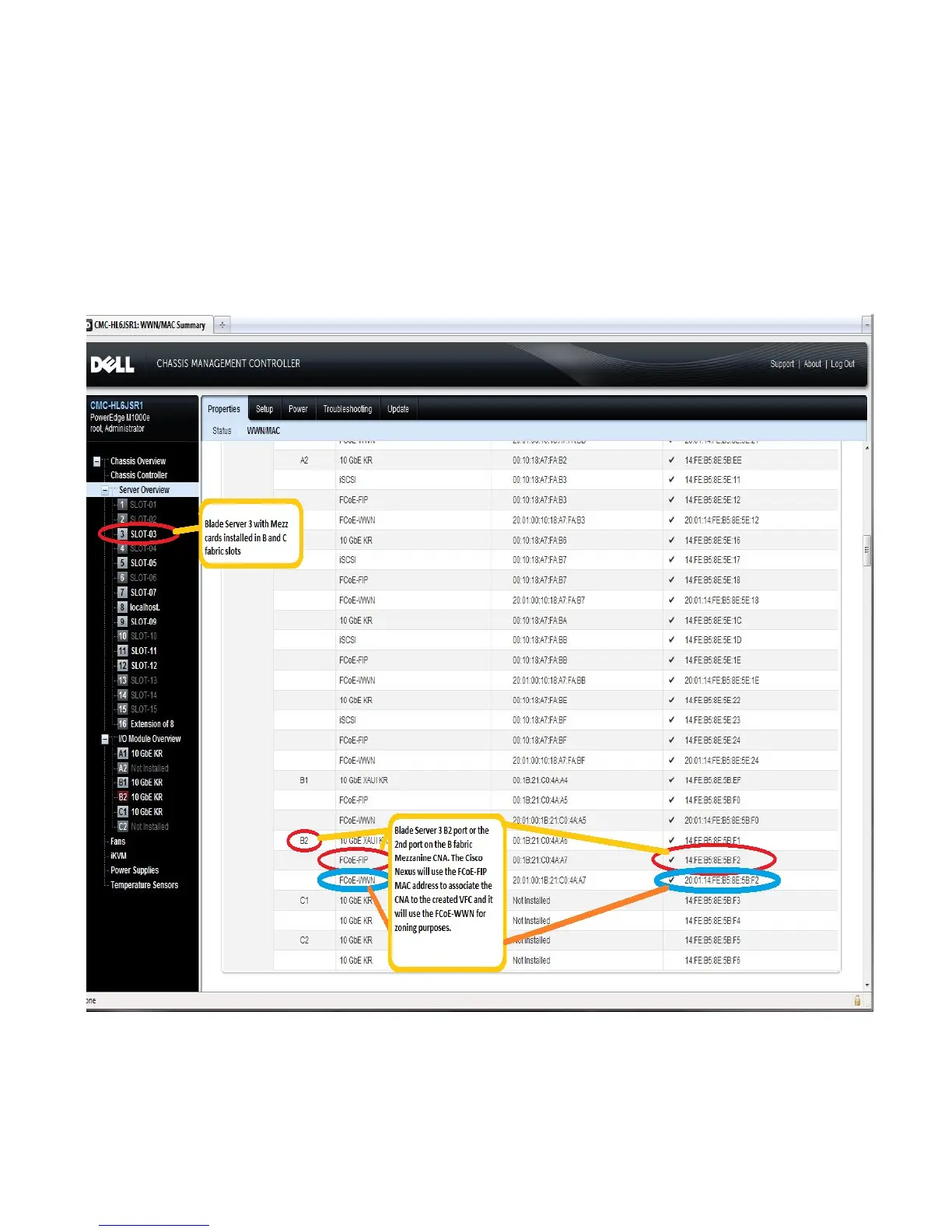

M1000e Chassis Management Controller -> Server Overview -> Properties -> WWN/MAC Figure 14.
information for Blade Server 3’s “B” fabric CNA port 2 (B2).

Dell Force10 MXL Specifications

General

Manageable	Yes
Product Series	Force10 MXL
Operating Temperature	0°C to 40°C (32°F to 104°F)
Layer Support	Layer 2, Layer 3
QoS Support	Yes
Power Supply	Dual, hot-swappable
Product Type	Switch
Jumbo Frame Support	Up to 9216 bytes
Management	CLI, SNMP, Web-based GUI
VLAN Support	Yes
