Dell H625cdw - Page 360

360 |Troubleshooting
Clearing Paper Jams From the Fusing Unit

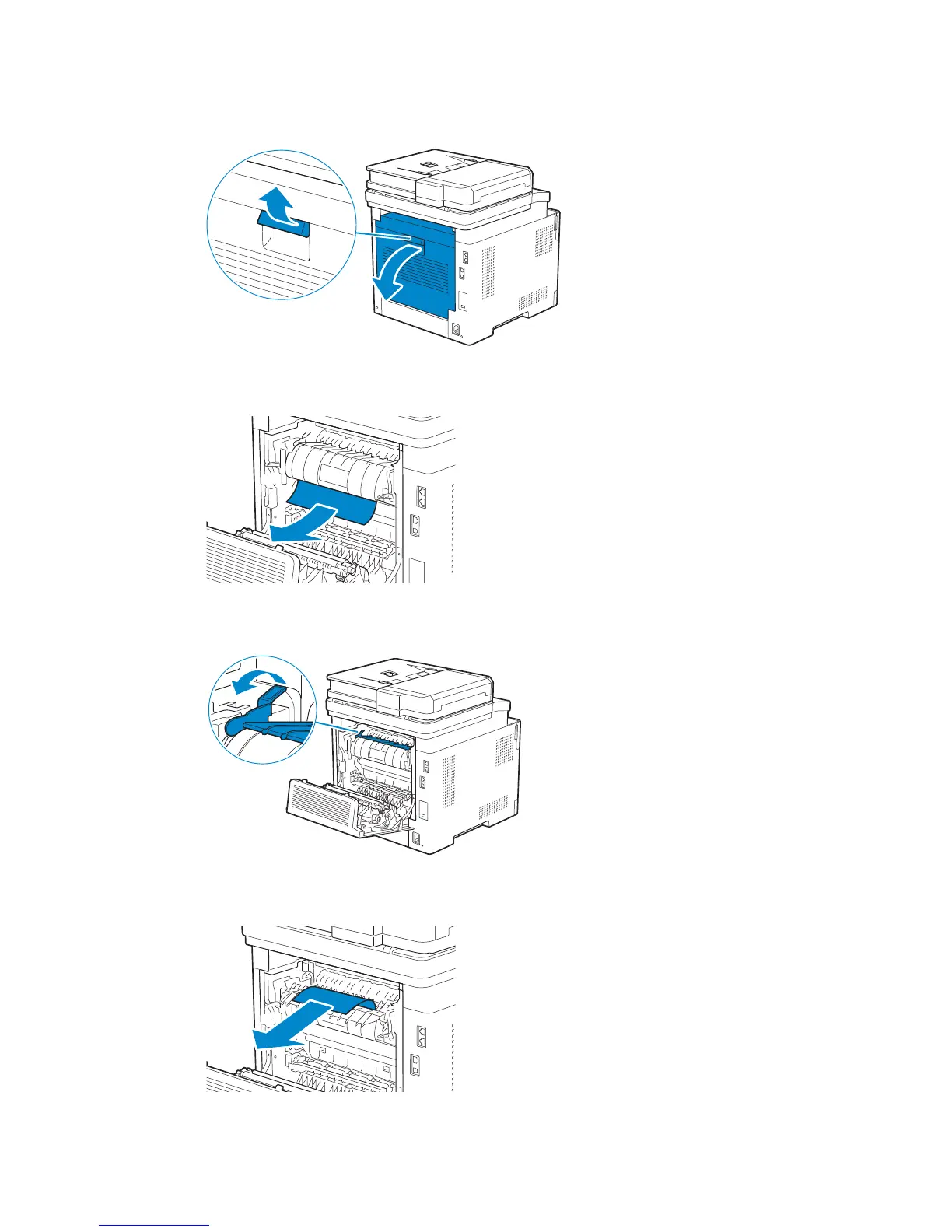

1 Pull up the handle lever of the rear cover, and then open the rear cover.
2 Remove the jammed paper from below the fusing unit.
3 Pull the tab that is located above the fusing unit and hold the part open.
4 Remove the jammed paper.
