Printer Overview
Front and Rear View

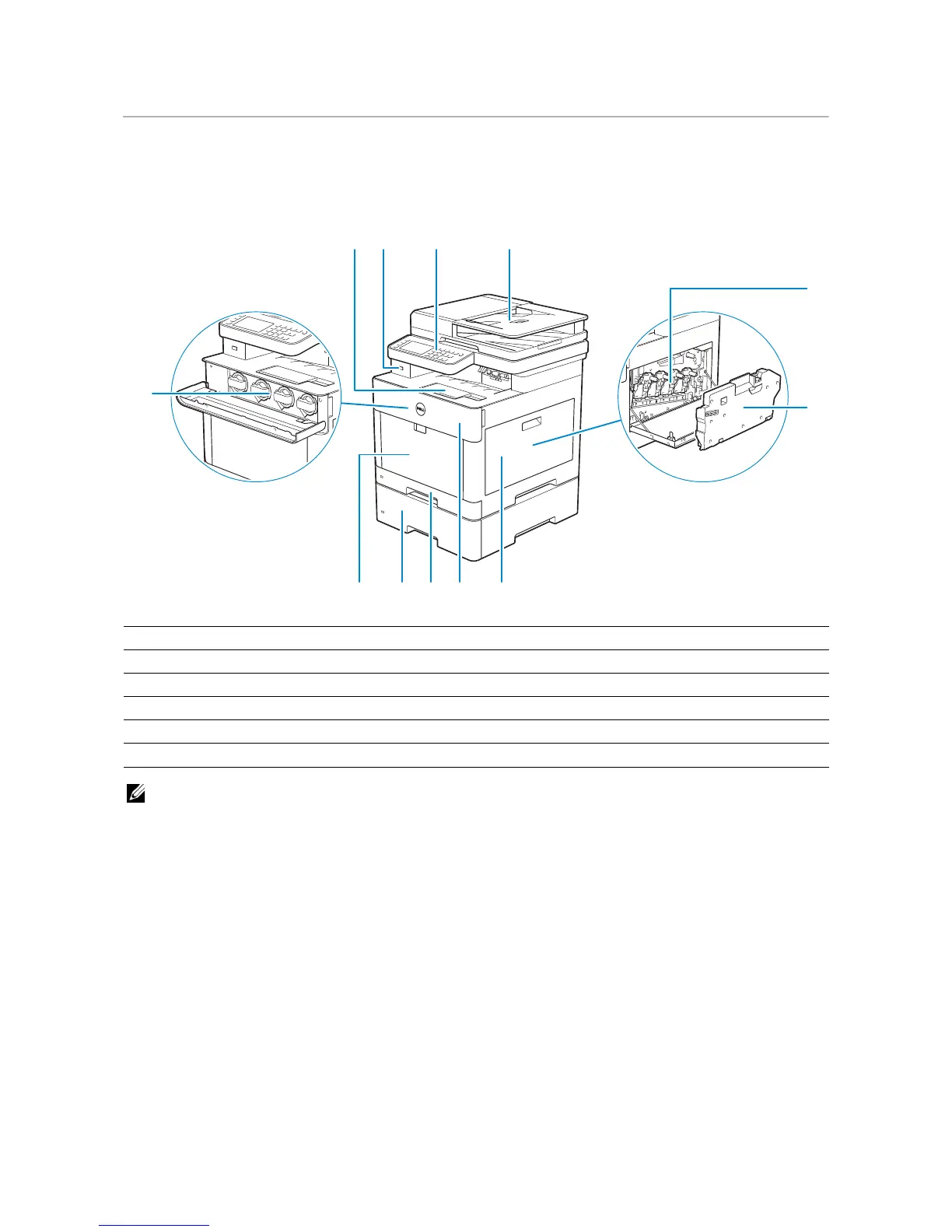

Front View
NOTE:
• Do not remove or insert the toner cartridges when the printer is in operation.
1 Output Tray Extension 7 Right Side Cover
2 Front USB Port 8 Front Cover
3Operator Panel 9Tray1
4 Duplex Automatic Document Feeder (DADF) 10 Optional 550-Sheet Feeder (Tray2)
5 Drum Cartridges 11 Multipurpose Feeder (MPF)
6 Waste Toner Box 12 Toner Cartridges
4
7891011
12
5
6
321
