Steps
1. Remove the five (M2.5x6) and three (M2.5x8) captive screws that secure the base cover to the computer.

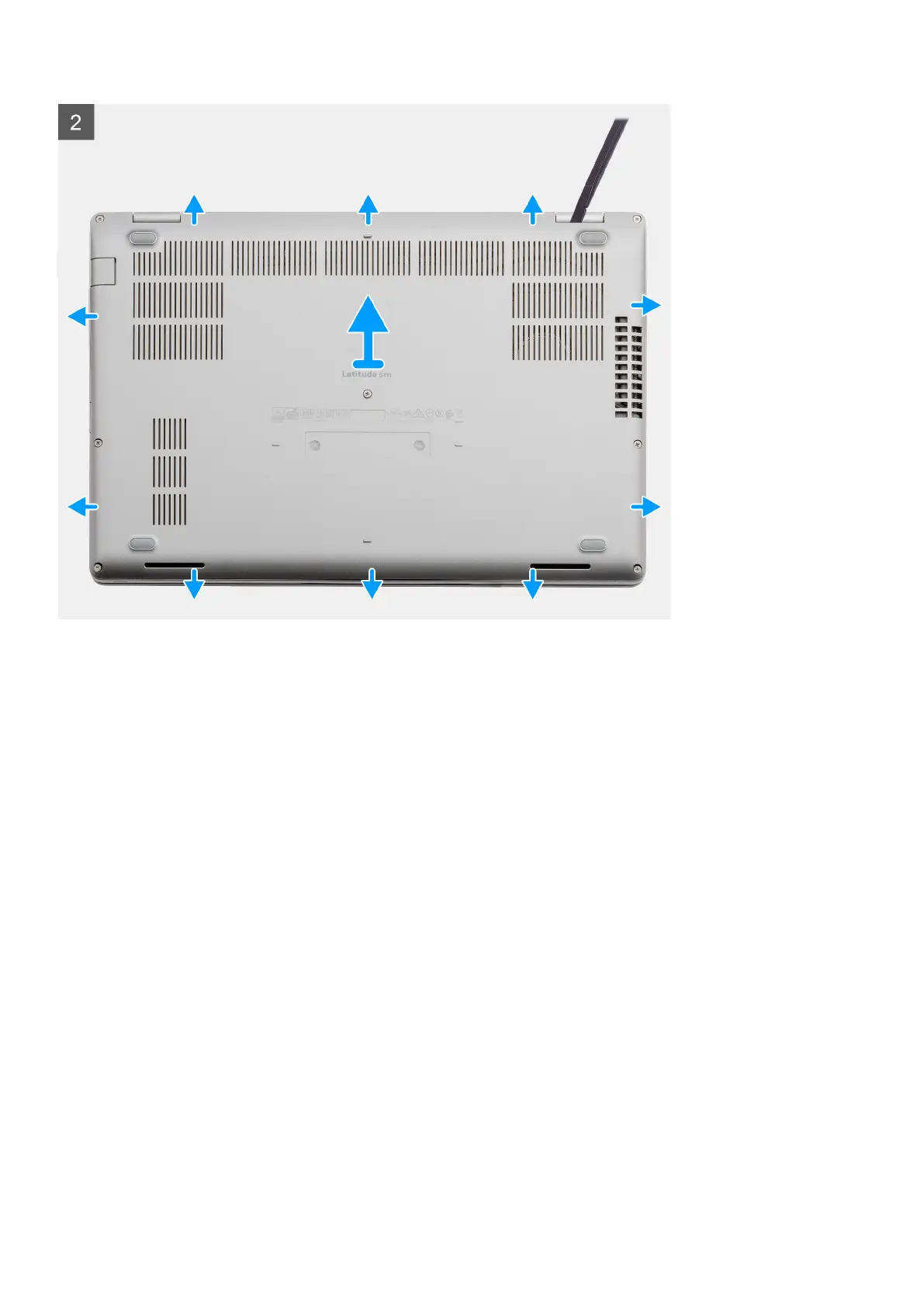

2. Pry the base cover starting from the right hinge and work your way around.
3. Lift the base cover away from the computer.
Installing the base cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the base cover and provides a visual representation of the installation procedure.
14
Disassembly and reassembly
