Touchpad buttons
Removing the touchpad button board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the 2280 SATA SSD.
5. Remove the WLAN card.
6. Remove the WWAN card.
7. Remove the inner frame.
About this task

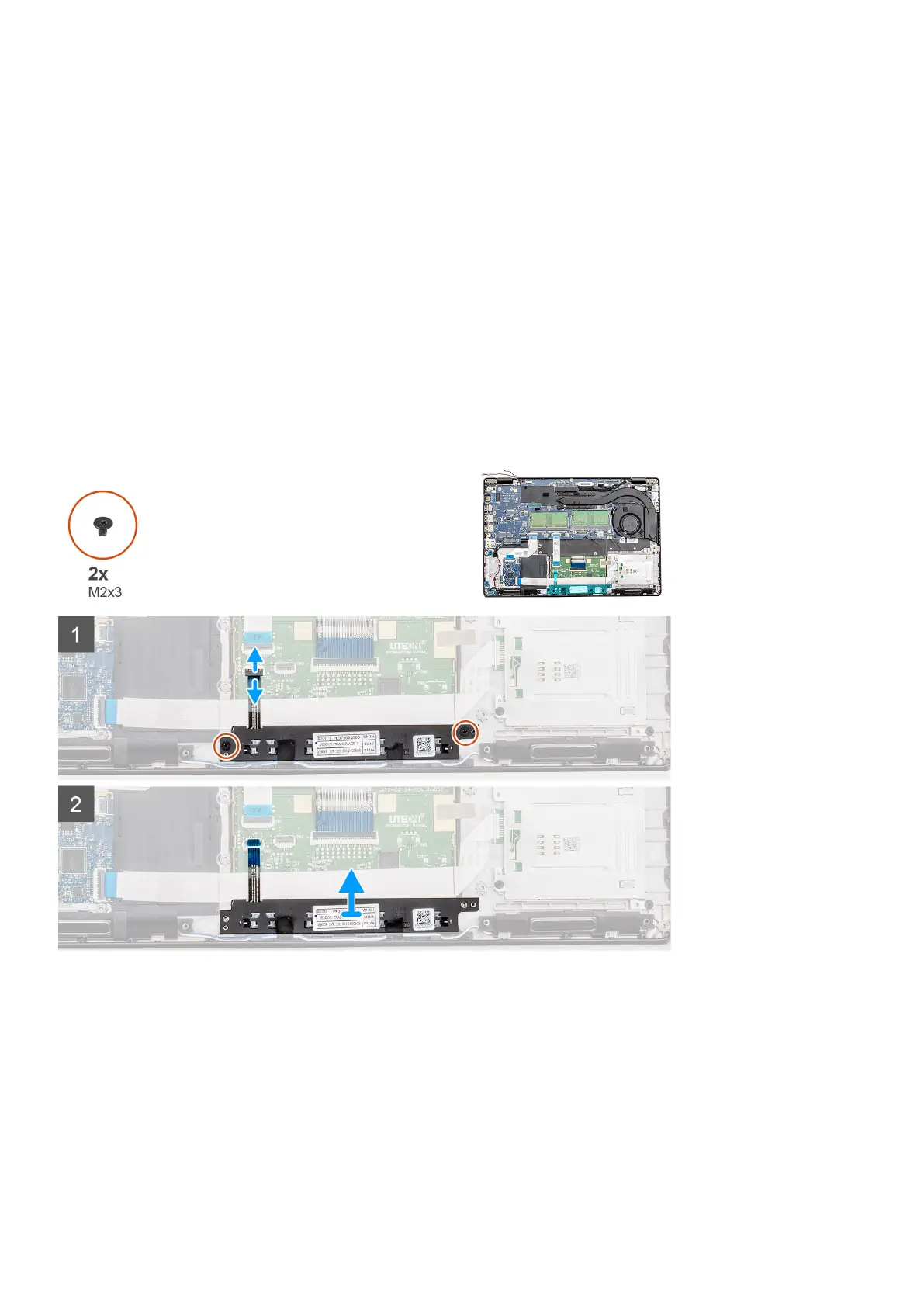

The figure indicates the location of the touchpad button board and provides a visual representation of the removal procedure.
Steps
1. Locate the touchpad buttons board on your computer.
2. Open the latch and disconnect the touchpad button board cable from the connector on the system board.
3. Remove the two (M2x3) screws that secure the touchpad button board to the palmrest.
4. Lift the touchpad button board out of the computer.
44
