ATG Port Cover
3
Removing the ATG Port Cover
1.
Follow the procedures in
Before Working On Your Computer
.
2.

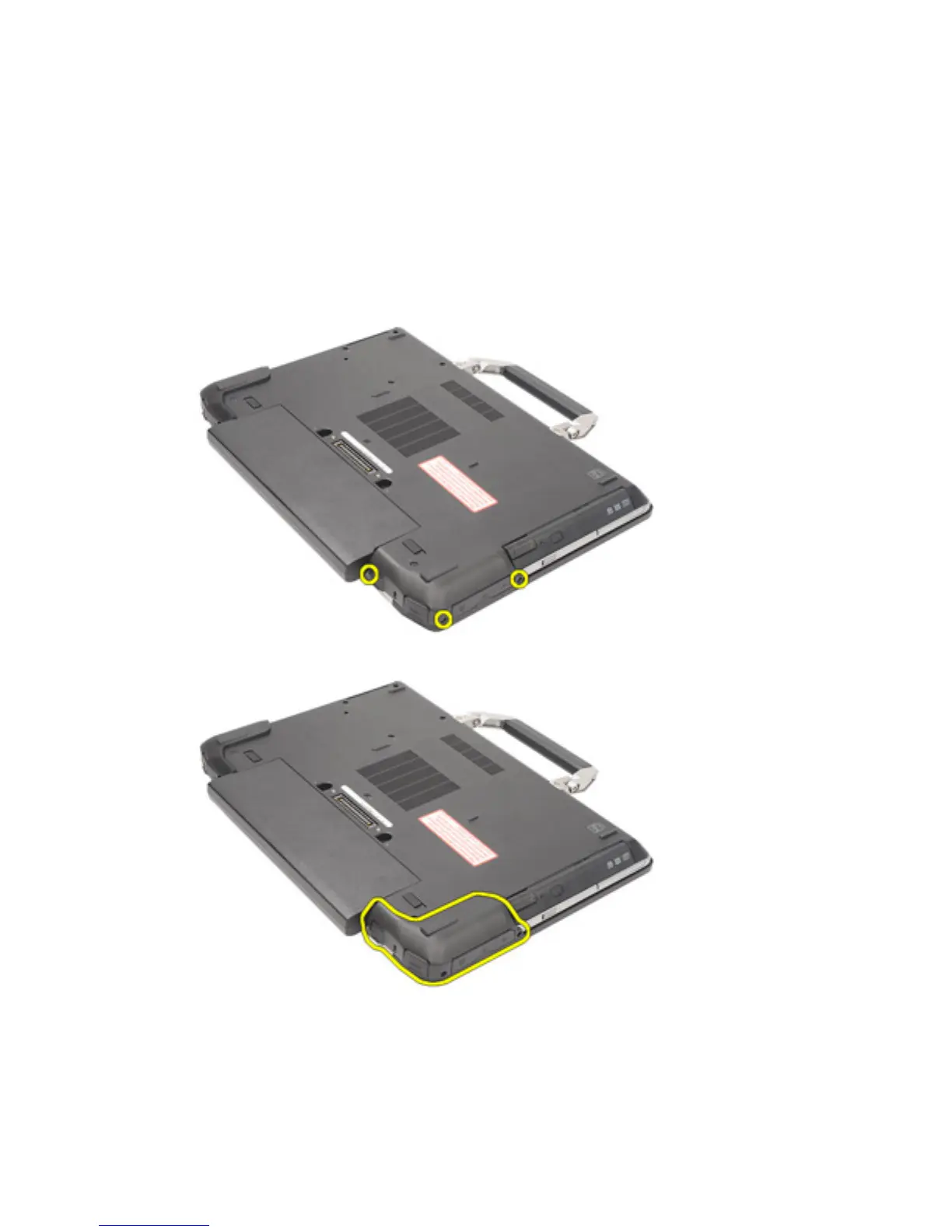

Remove the screws on the right ATG Port Cover.
3.
Remove the right ATG port cover.
4.
Remove the screws on the left ATG port cover.
15
14
16
