Dell Latitude E6420 - Installing the Palm Rest Assembly

Installing the Palm Rest Assembly

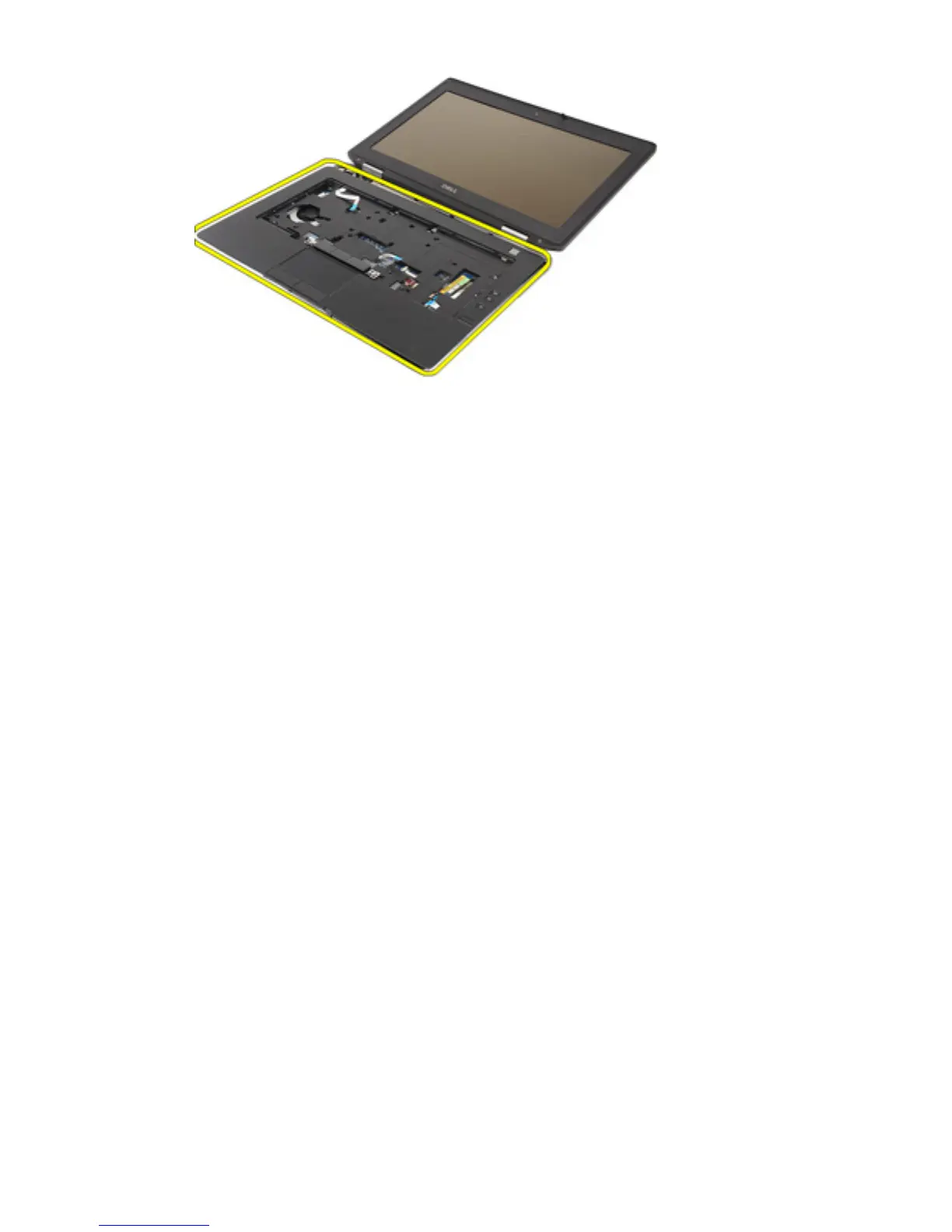

1. Align the palm rest assembly with the computer and gently snap it into
place.
2. Replace and tighten the screws that secure the palm rest assembly to the
system board.
3. Connect the LED, smart card, touchpad, RFID, and ExpressCard cables to
the system board.
4. Replace and tighten the screws that secure the palm rest assembly to the
computer.
5. Install the
Keyboard .
6. Install the Keyboard Trim .
7. Install the Bluetooth Card .
8. Install the
WWAN Card .
9. Install the Hard Drive .
10. Install the
Optical Drive .
11. Install the Base Cover .
12. Install the
Secure Digital (SD) Card .
13. Install the Battery .
14. Install the
ATG Port Cover (only for E6420 ATG systems).
15. Install the ATG Handle (only for E6420 ATG systems).
16. Follow the procedures in
After Working Inside Your Computer .
