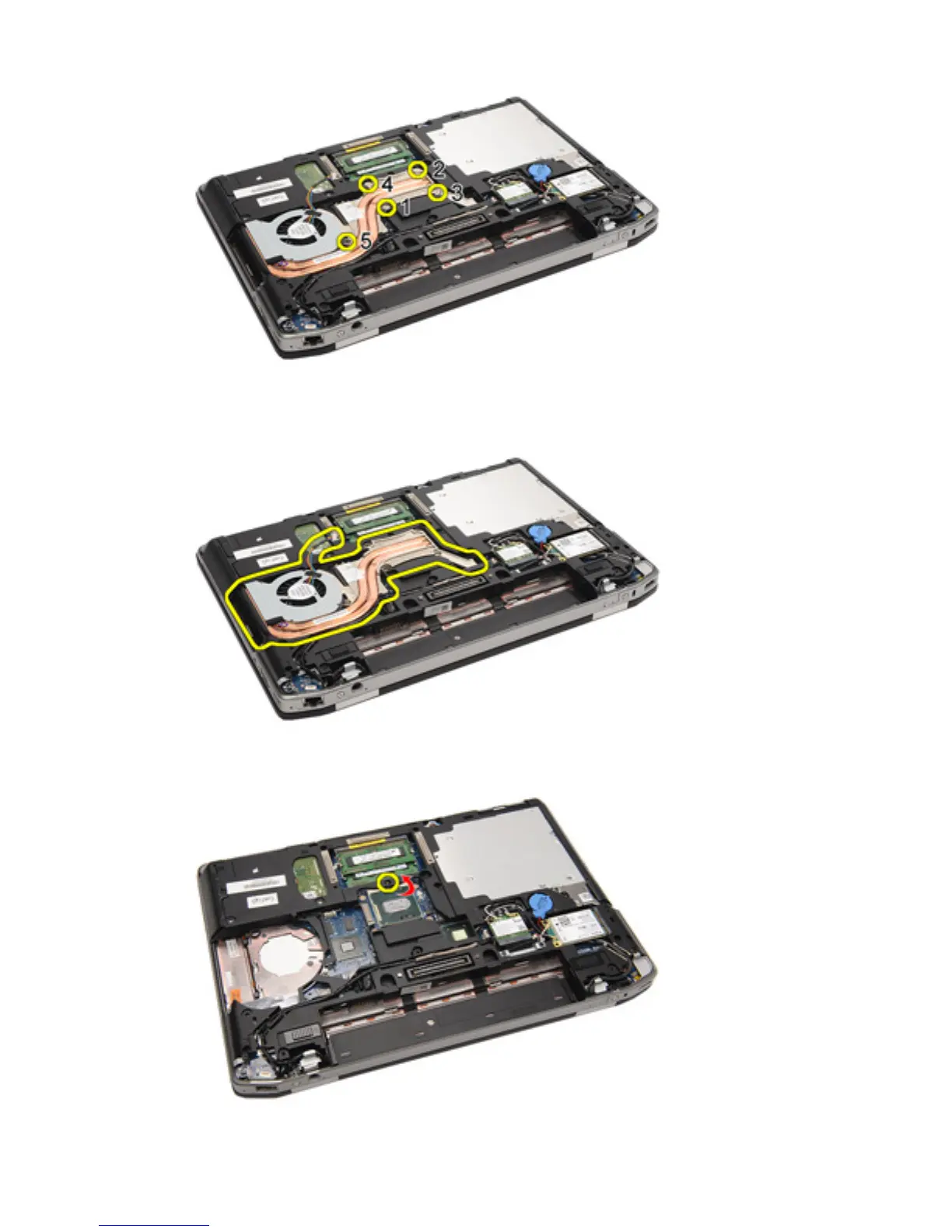

9. Remove the heat sink assembly from the system.

10. Rotate the processor cam lock in a counter-clockwise direction.

48
