Installing easel stand
1 Position the stand to allow the metal plate tab to align with the notches on the back cover.
2 Replace the M4x7 screws to secure the stand to the computer.
3 Place the cover on the metal plate until snaps in.
4 Follow the procedure in After working inside your computer.
Optical drive
Removing optical drive
1 Follow the procedure in Before working inside your computer.
2 Remove the stand.

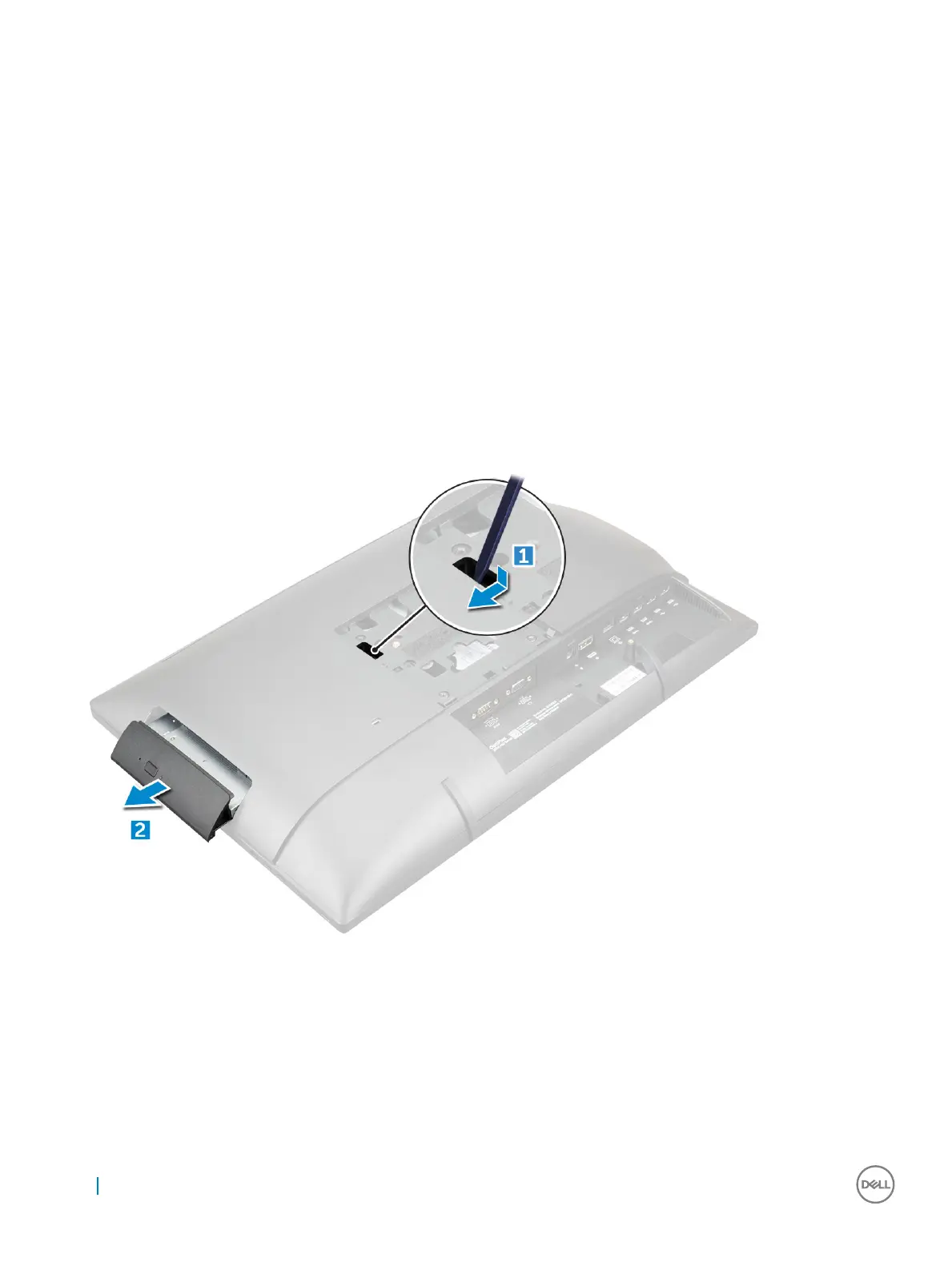

3 To remove the optical drive:
a Using a plastic scribe push the metal tab that is beneath the cover to release the optical drive [1].
b Remove the optical drive from the computer [2].
Installing optical drive
1 Insert the optical drive into the slot, until it snaps in.
2 Install the stand.
3 Follow the procedure in After working inside your computer.
10
Removing and installing components
