Intrusion switch
Removing intrusion switch
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a stand
b optical drive
c back cover

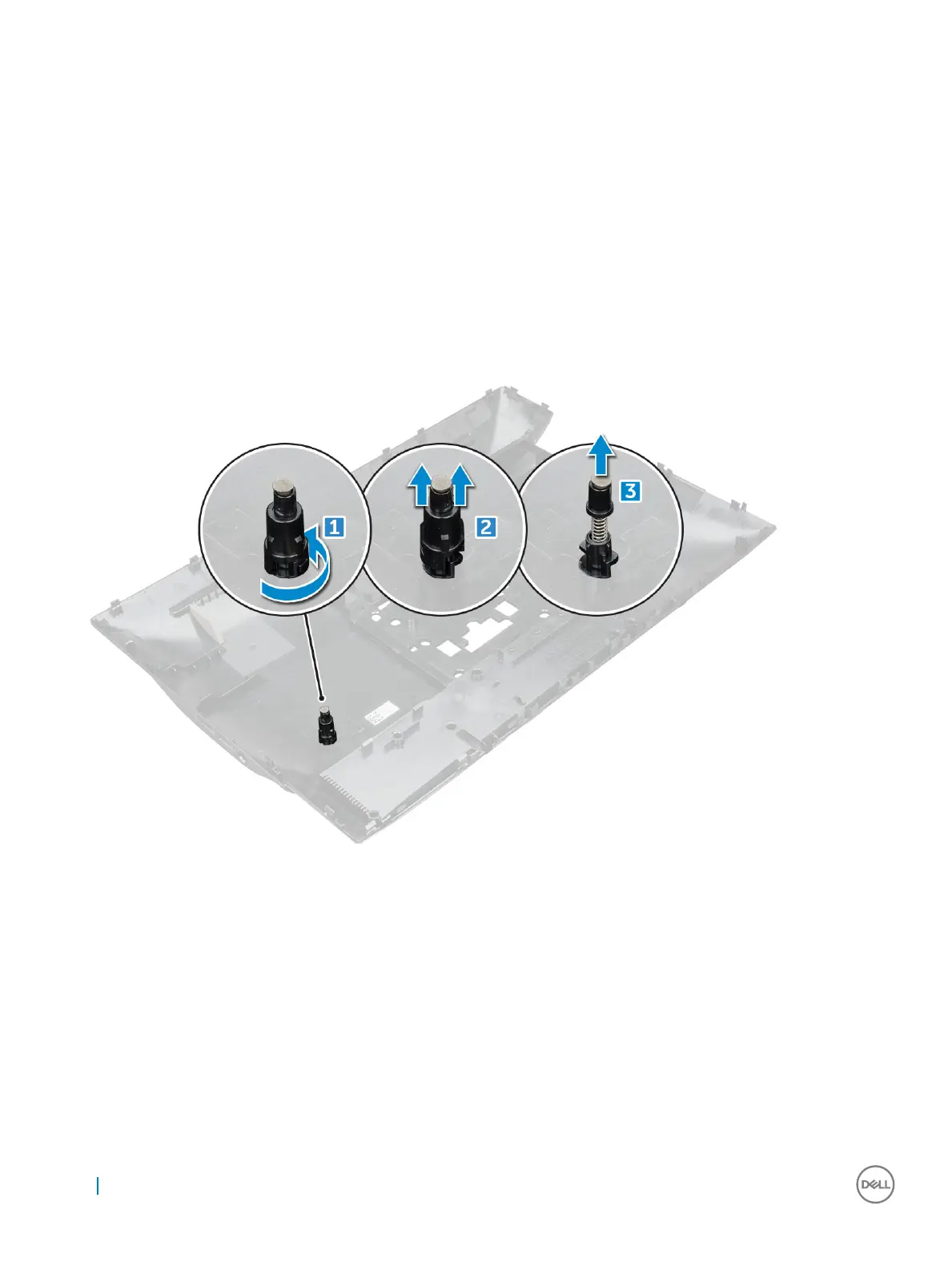

3 To remove intrusion switch:
a Turn the holder clockwise direction [1].
b Lift the holder [2].
c Lift the intrusion switch [3].
Installing intrusion switch
1 Insert the switch on the holder on the back cover.
2 Plug the holder to intrusion switch
3 Replace the holder in direction.
4 Install the:
a back cover
b optical drive
c stand
5 Follow the procedure in After working inside your computer.
