System board shield
Removing system board shield
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a stand
b optical drive
c back cover
3 To remove system board shield:

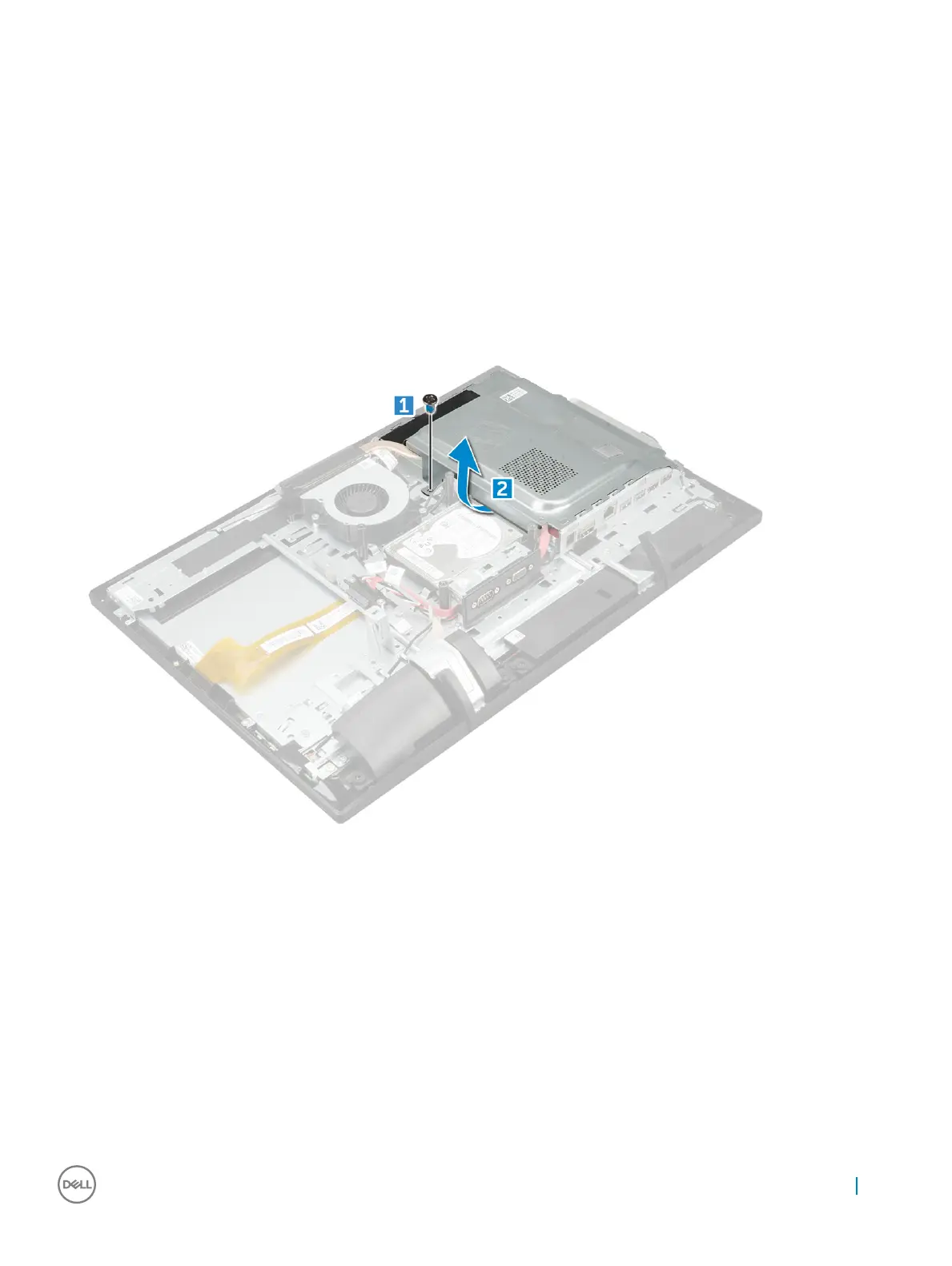

a Remove the M3 0.5x5 screw that secures system board shield to the computer [1].
b Lift the system board shield away from the computer [2].
Installing system board shield
1 Align the system board shield with the screw holder on the computer.
2 Replace M3 0.5x5 screw to secures the system board shield to the computer.
3 Install the:
a back cover
b optical drive
c stand
4 Follow the procedure in After working inside your computer.
Removing and installing components
13
