3 Replace the M2x2.5 screw to secure the heat sink to the chassis.
4 Install the:
a system board shield
b back cover
c optical drive
d stand
5 Follow the procedure in After working inside your computer.
System fan
Removing system fan (35 W optional)
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a stand
b optical drive
c back cover
d system board shield

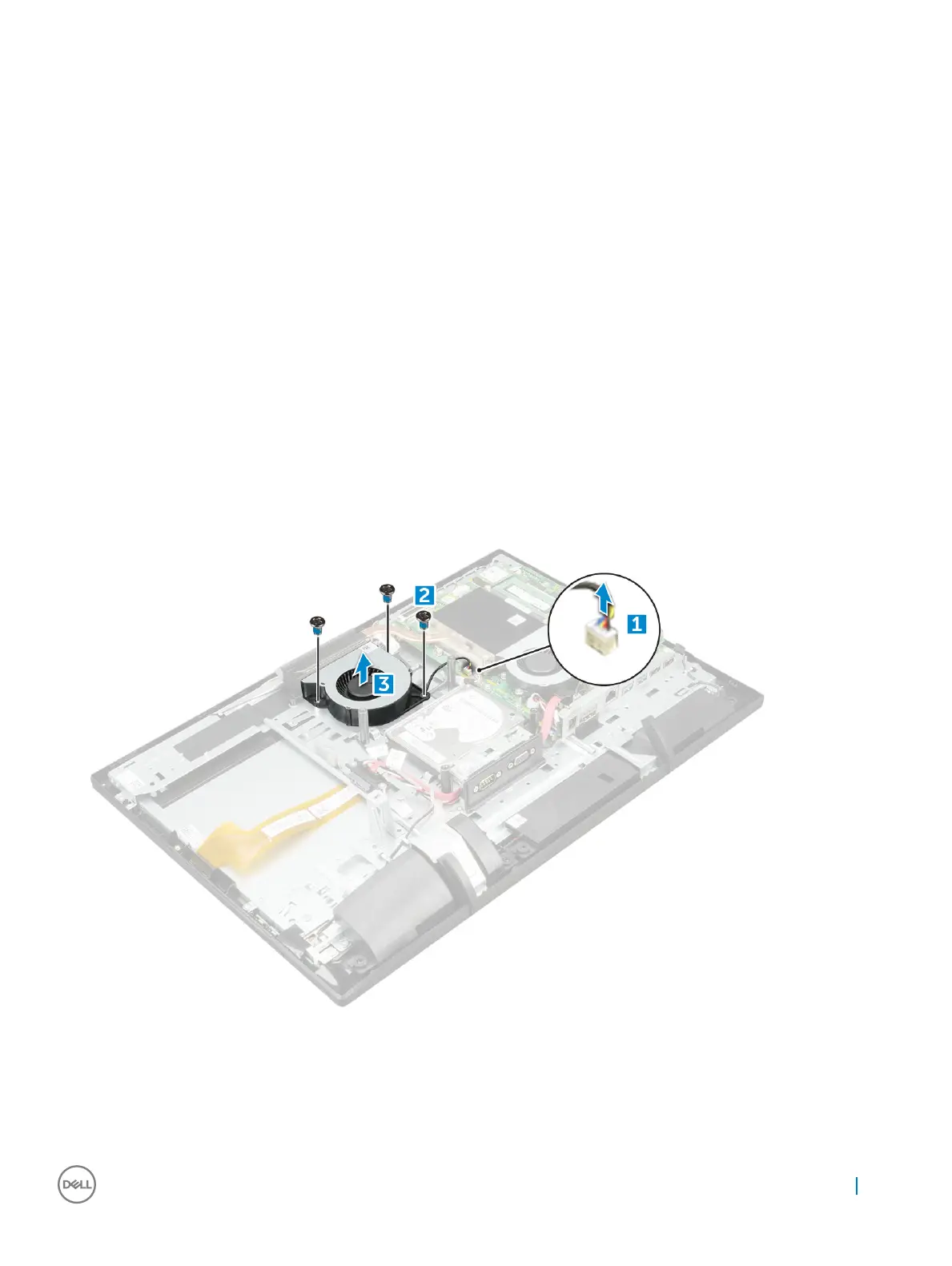

3 To remove system fan:
a Disconnect the system fan cable [1].
b Remove the M3.5x5 screws that secure the system fan to the system board [2].
c Lift the system fan away from the computer [3].
Installing system fan (35 W optional)
1 Place the system fan to align with the screw holders on the chassis.
2 Replace the M3.5x5 screws to secure the system fan to the chassis.
Removing and installing components
21
