r stand
6 Follow the procedure in After working inside your computer.
Camera
Removing camera
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a stand
b optical drive
c back cover
d hard drive
e system board shield
f cable holder
g memory module
h coin cell battery
i SSD card
j WLAN card
k heat sink
l processor
m system fan
n OSD board
o speaker
p graphics card assembly
q system board
r chassis frame
s display assembly

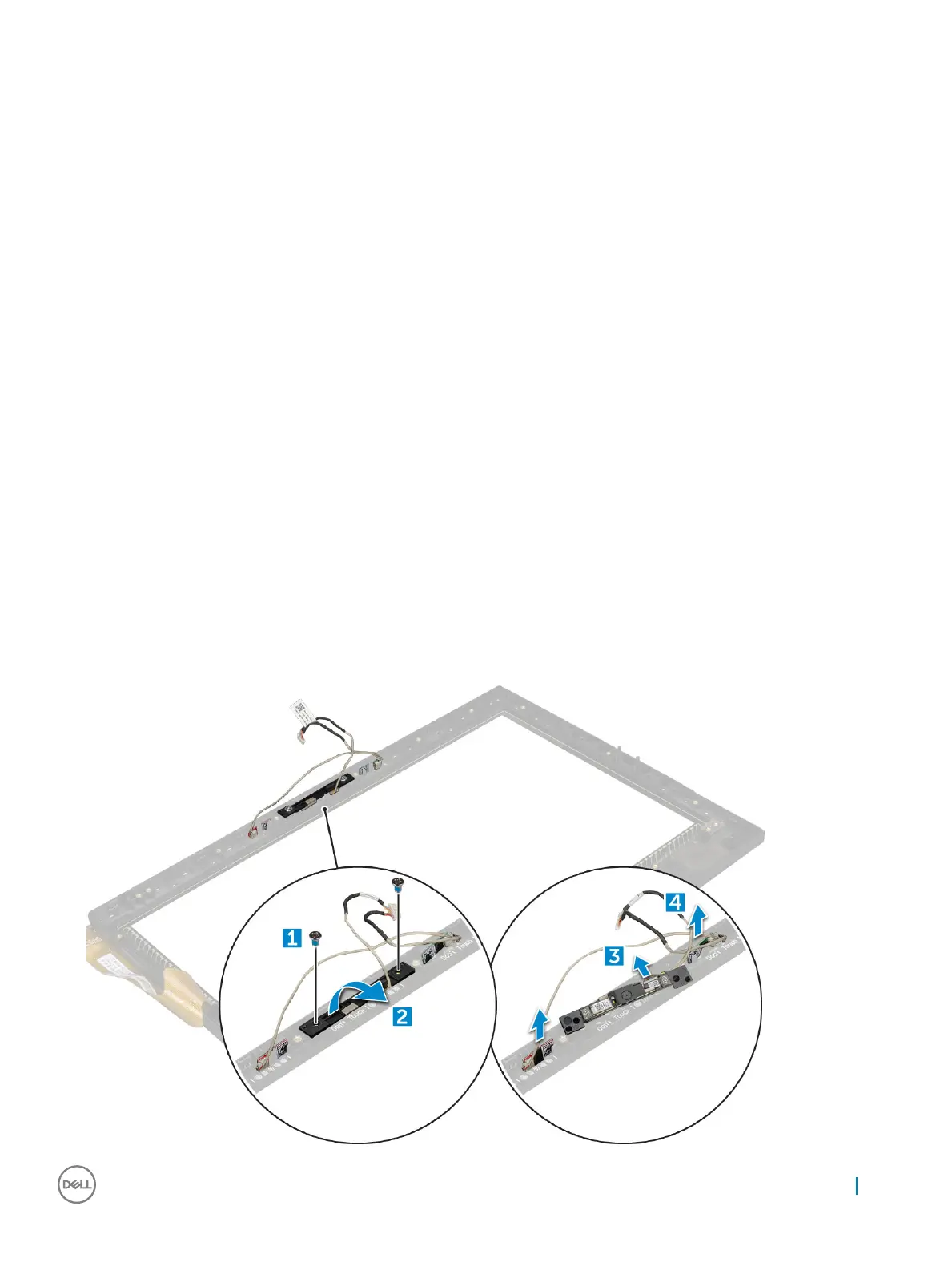

3 To remove camera:
a Remove the M3 0.5x5 screws that secure the camera [1].
b Disconnect the camera cables [2].
c Remove the camera module [3, 4].
Removing and installing components
35
