4 To remove the hard drive bracket:

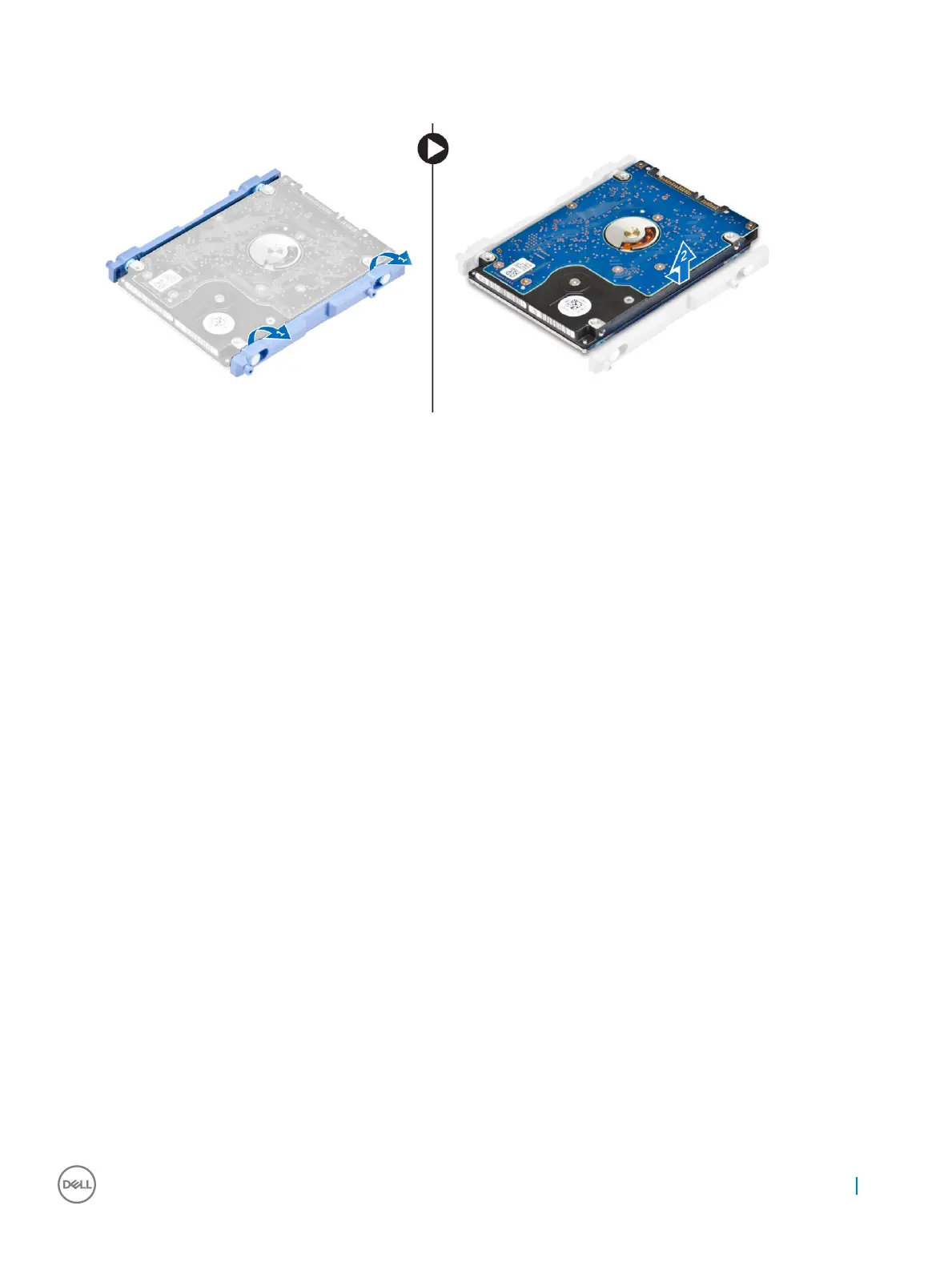

a Pry the edges of the bracket to release the hard drive [1].
b Slide the hard drive and lift it away from the bracket [2].
Installing the hard drive assembly
1 Align the hard drive until the notches are aligned and the hard drive is secured in the bracket.
2 Place the hard drive on the hard drive cage until the notches are aligned and it snaps in.
3 Install the:
a back cover
b stand
4 Follow the procedure in After working inside your computer.
Optical drive
Removing the optical drive assembly
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a stand
b back cover
3 To remove the optical drive assembly:
a Press the securing tab at the base of the drive to release the optical drive assembly [1].
b Slide the optical drive assembly to remove it away from the computer [2].
Removing and installing components
15
