Dell OptiPlex 5250 - System Board Shield; Removing the System Board Shield; Installing the System Board Shield

a back cover
b stand
5 Follow the procedure in After working inside your computer.
System board shield
Removing the system board shield
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a stand
b back cover
3 To remove the system board shield:

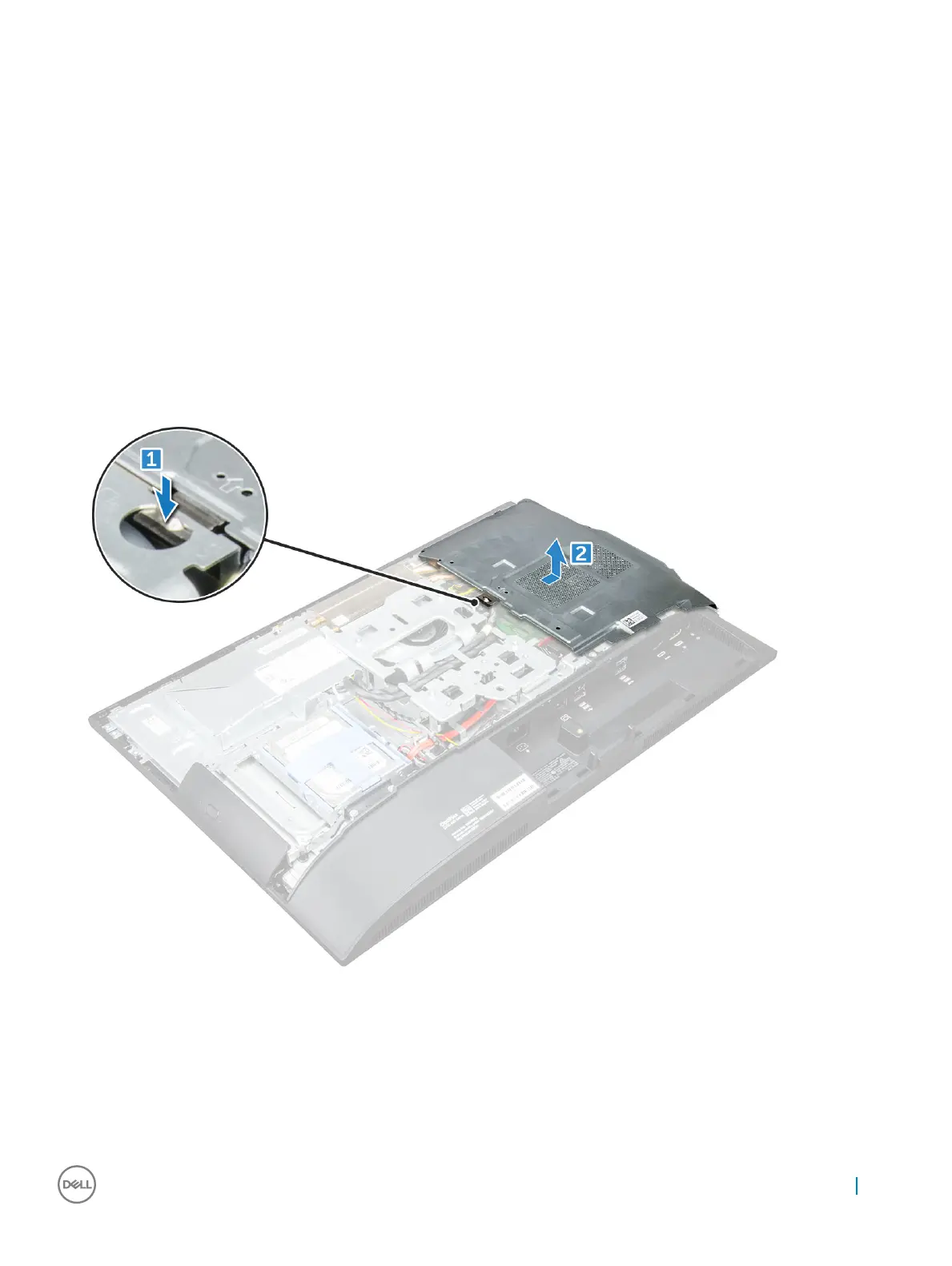

a Press the securing tab to release the system board shield from the slots on the computer [1].
b Slide the system board shield away from the computer [2].
Installing the system board shield
1 Align and slide the system board shield until it snaps in.
2 Install the:
a back cover
b stand
