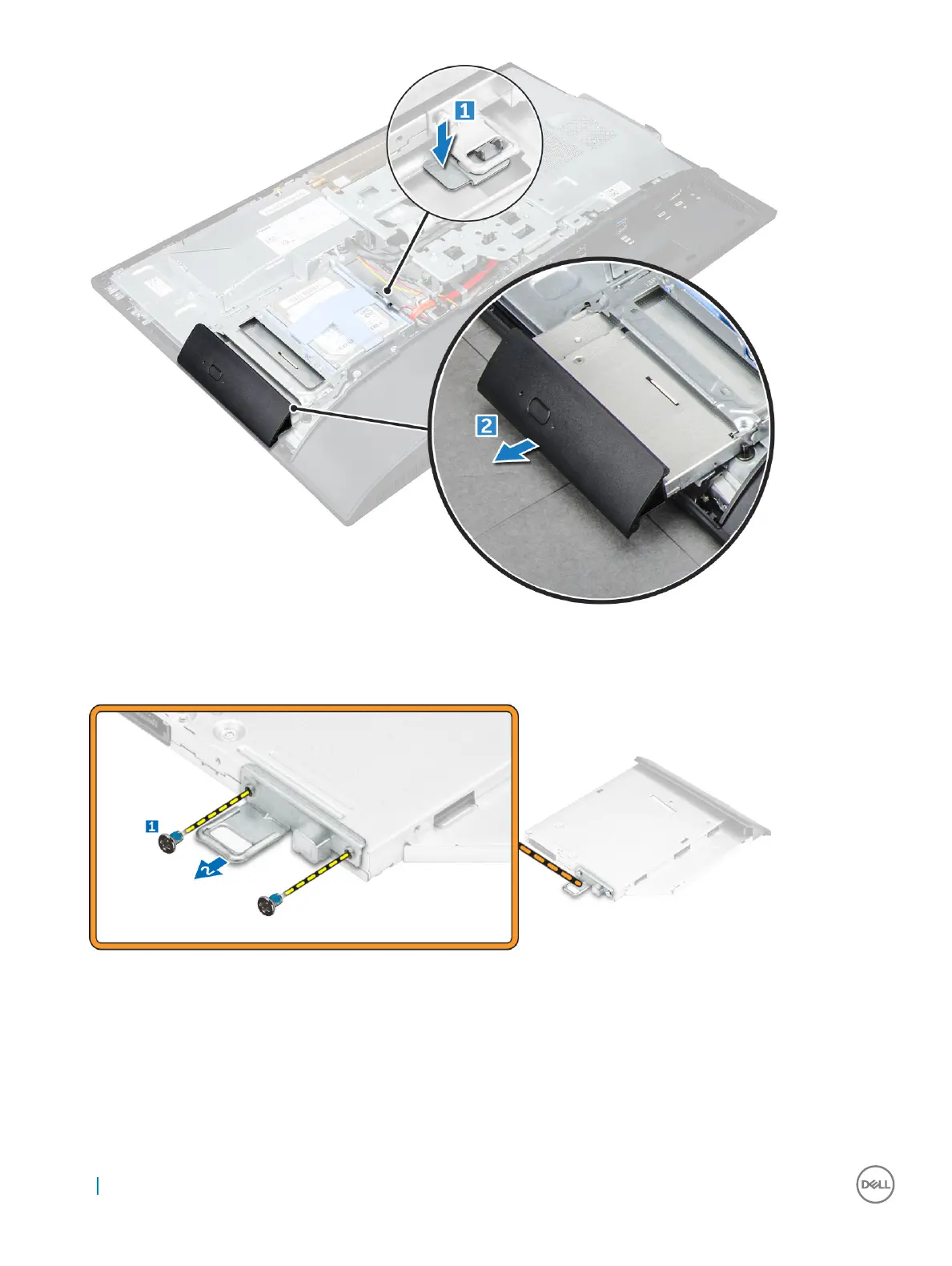

4 To remove the optical drive bracket:
a Remove the screws that secure the optical drive bracket [1].
b Remove the bracket away from the optical drive [2].
Installing the optical drive assembly
1 Place the bracket to align the screw holders on the optical drive.
2 Tighten the screws to secure the bracket to the optical drive.
3 Insert the optical drive assembly into the drive slot, until it snaps in.
4 Install the:
16
Removing and installing components
