System fan
Removing the system fan
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a stand
b back cover
c cable cover
d speaker cover
e system board shield
f power supply unit
g VESA mount bracket

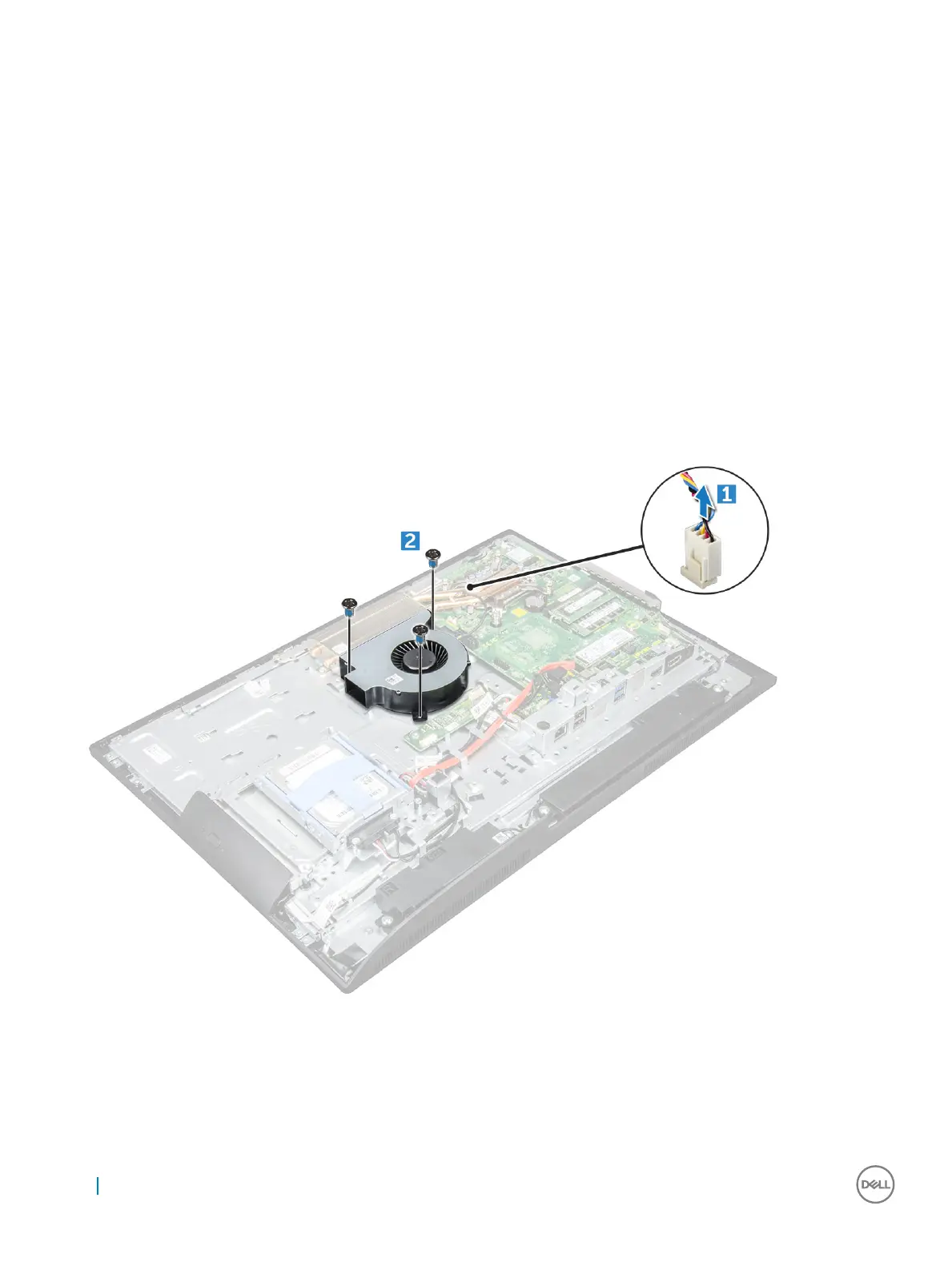

3 To remove the system fan:
a Disconnect the system fan cable from the connector on the system board [1].
b Remove the screws that secure the system fan to the computer [2].
c Lift the system fan away from the computer [3].
Installing the system fan
1 Align and place the system fan in the slot on the chassis.
2 Tighten the screws to secure the system fan to the system board.
30
Removing and installing components
