Solid State Drive (SSD)
Removing the SSD card
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a stand
b back cover
c system board shield

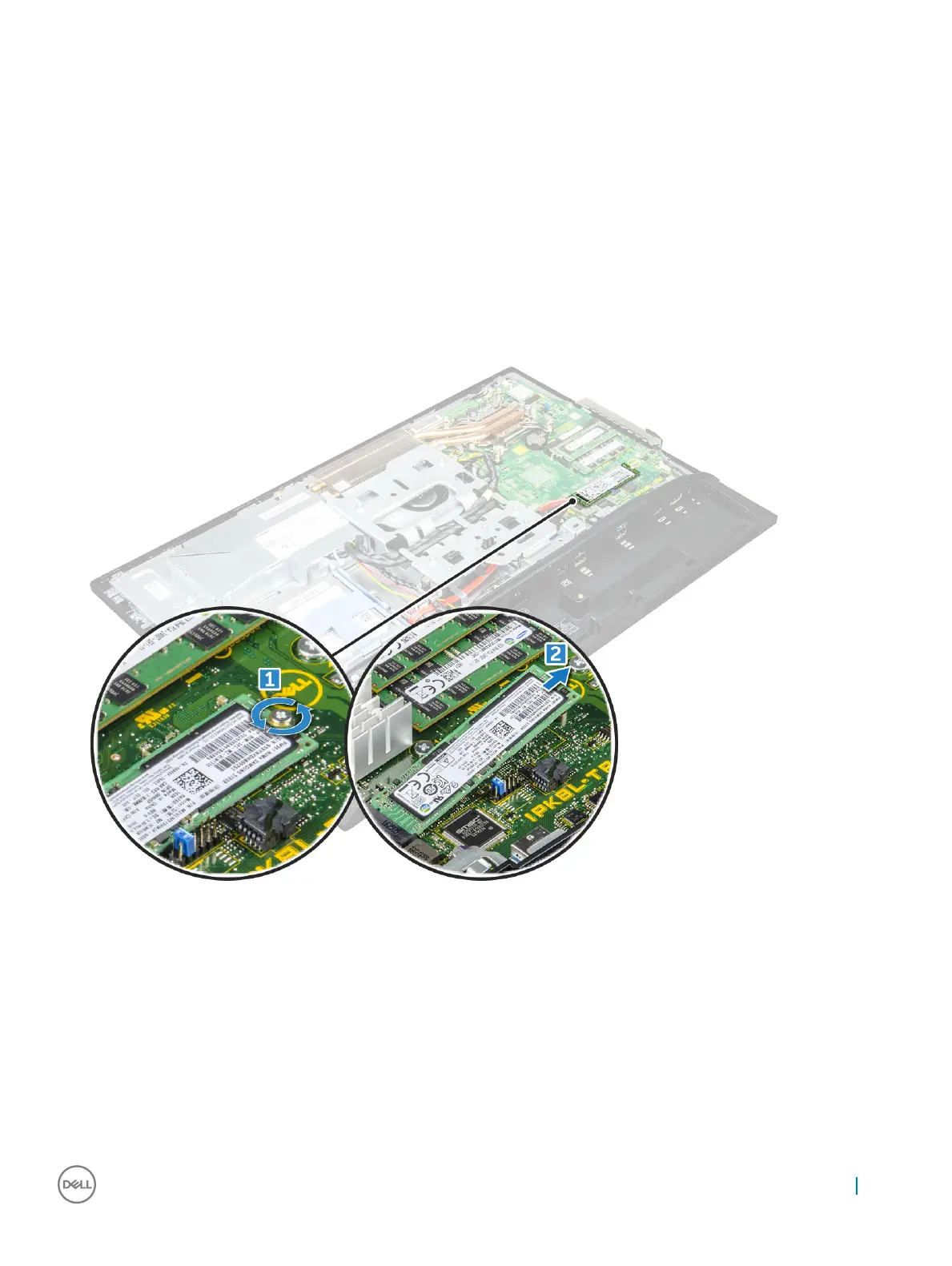

3 To remove the SSD card:
a Remove the screw that secures the SSD card to the computer [1].
b Lift the SSD card away from the connector [2].
Installing the SSD card
1 Insert the SSD card into the connector.
2 Tighten the screw to secure the SSD card to the system board.
3 Install the:
a system board shield
b back cover
c stand
4 Follow the procedure in After working inside your computer.
Removing and installing components
19
