Speaker
Removing the speaker module
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a stand
b back cover
c cable cover
d speaker cover
e system board shield

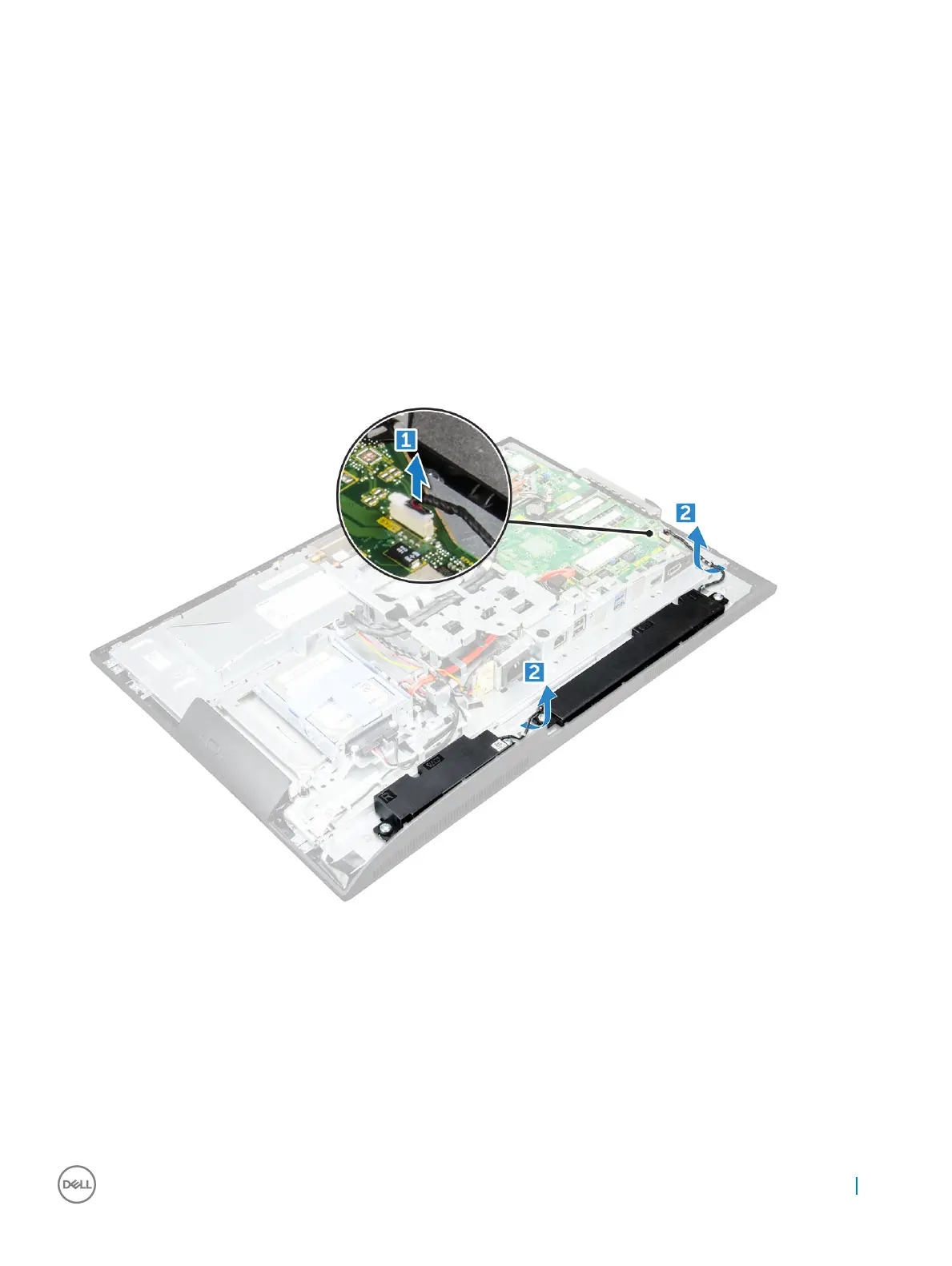

3 To release the speaker module:
a Disconnect the speaker cable from the connector on the system board [1].
b Unthread the speaker cables from the retention clips [2].
4 To remove the speaker module:
a Remove the screws that secure the speaker module to the chassis [1].
b Lift the speaker module and remove it from the chassis [2].
Removing and installing components
23
