3 Connect the system fan cable to the connector on the system board.
4 Install the:
a VESA mount bracket
b power supply unit
c system board shield
d speaker cover
e cable cover
f back cover
g stand
5 Follow the procedure in After working inside your computer.
Intrusion switch
Removing the intrusion switch
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a stand
b back cover
c cable cover
d speaker cover
e system board shield
f power supply unit
g VESA mount bracket

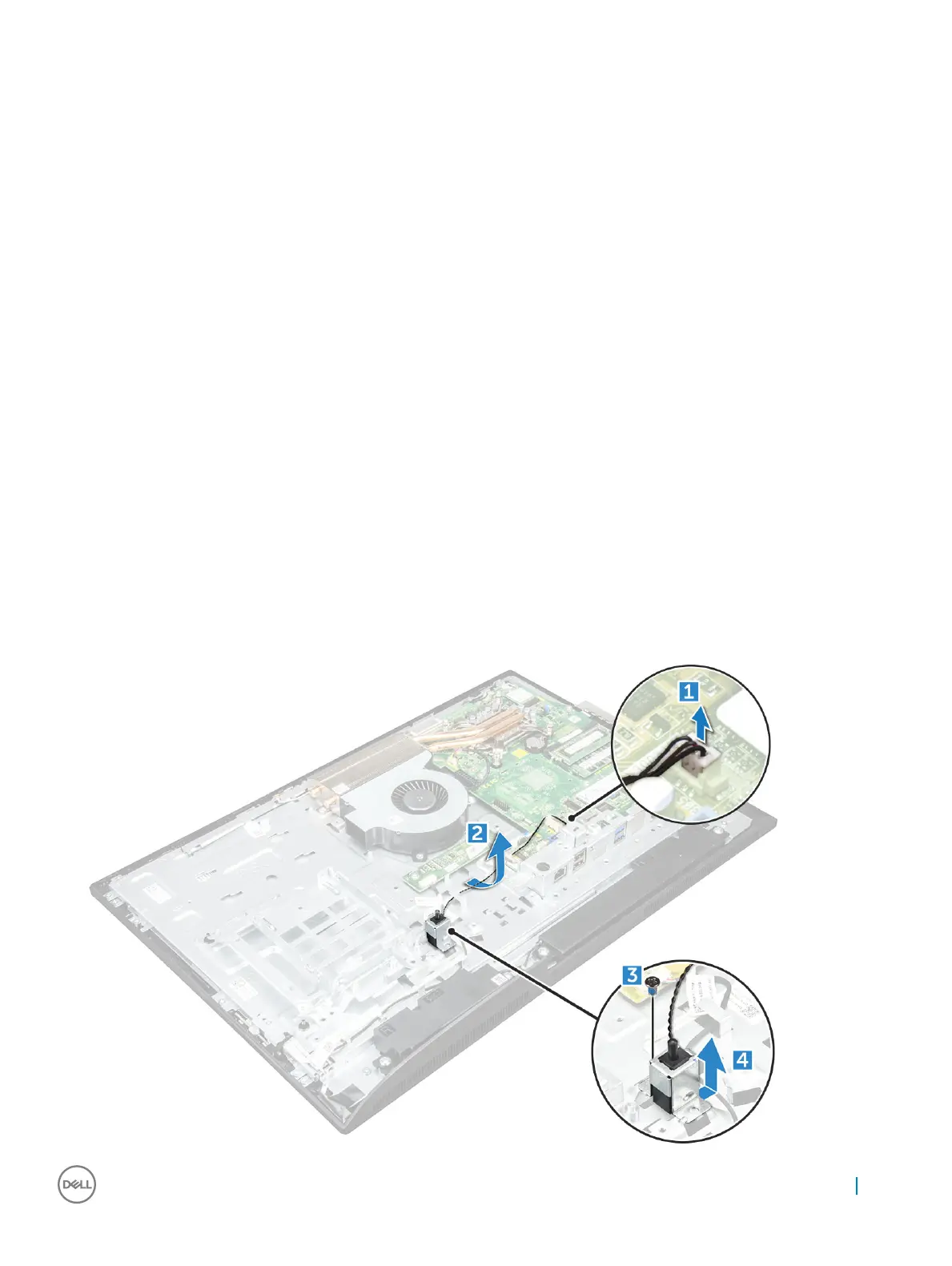

3 To remove the intrusion switch:
a Disconnect the intrusion switch cable from the connector on the system board [1].
b Unthread the intrusion switch cable from the retention clips on the computer [2].
c Remove the screw that secures the intrusion switch to the computer [3].
d Slide and lift the intrusion switch away from the computer [4].
