Installing the power and OSD buttons board

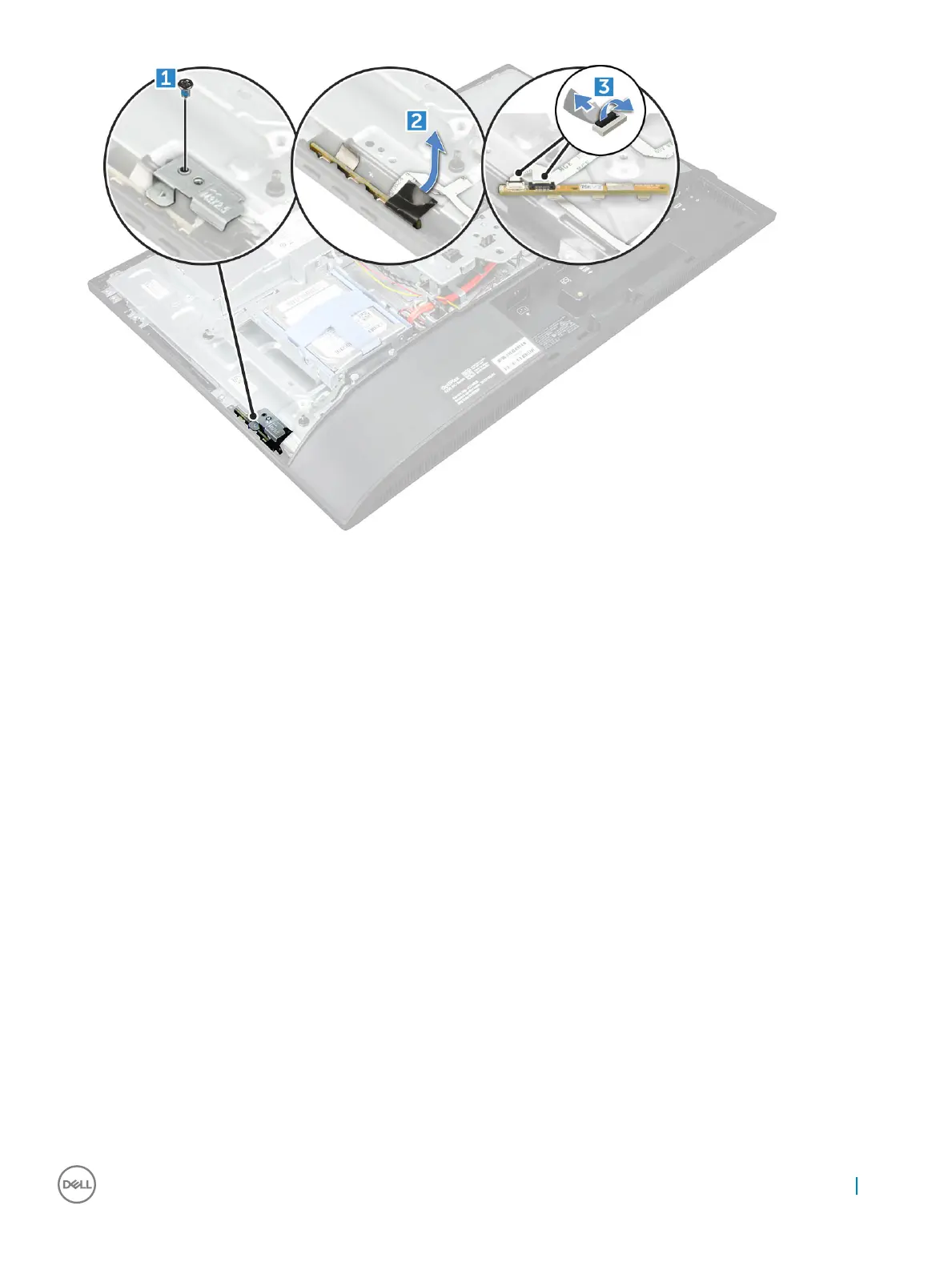

1 Connect the cable to the power and OSD buttons board.
2 Ax the tape on the OSD buttons board.
3 Insert the power and OSD buttons board into the slot.
4 Align the metal plate on the power and OSD buttons board.
5 Tighten the screw to secure the power and OSD buttons board.
6 Install the:
a back cover
b stand
7 Follow the procedure in After working inside your computer.
Processor
Removing the processor
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a stand
b back cover
c cable cover
d speaker cover
e speaker
f VESA mount bracket
g system board shield
Removing and installing components
