g VESA mount bracket

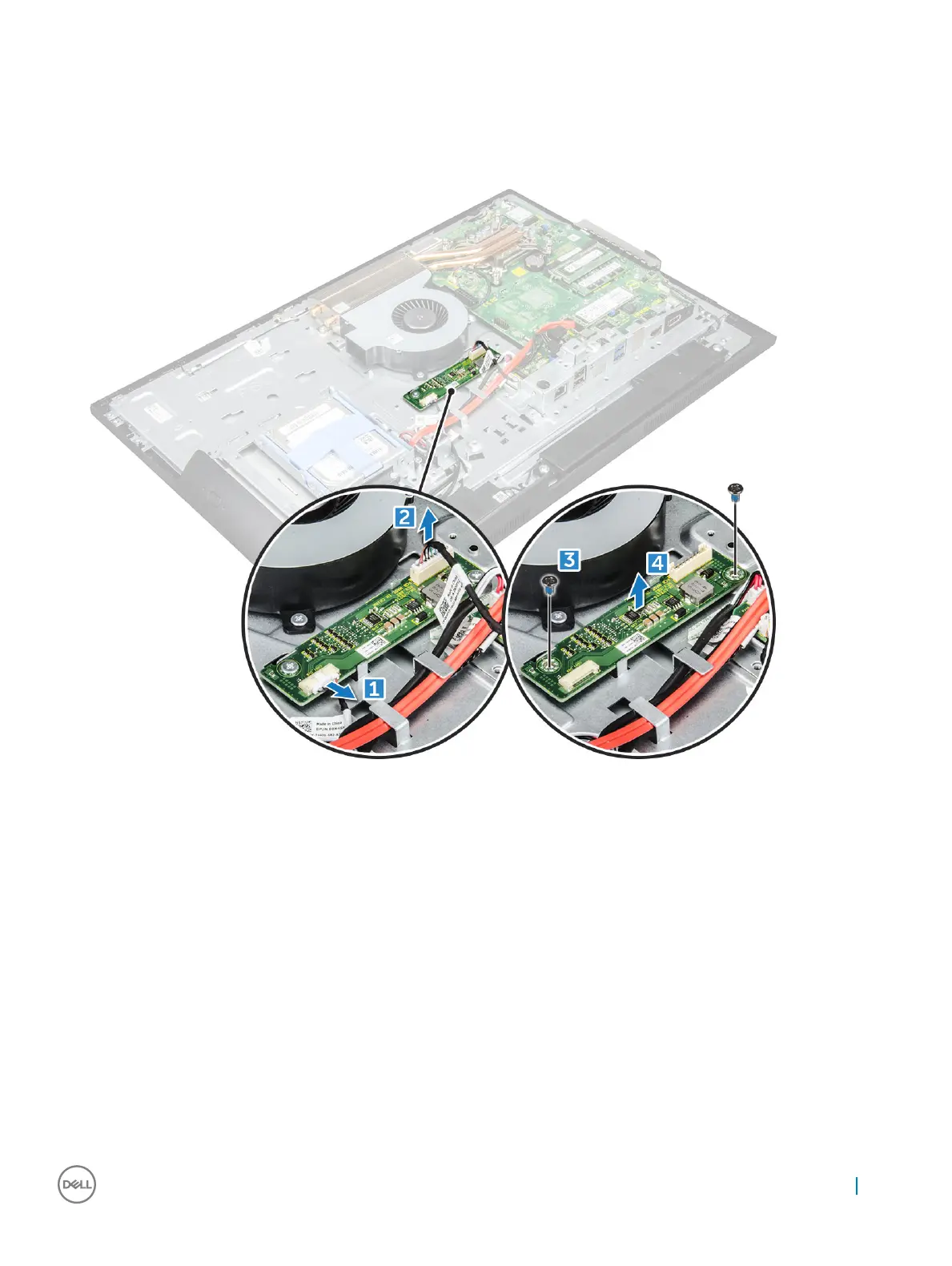

3 To remove the converter board:
a Disconnect the convertor board cable from the converter board [1].
b Disconnect the display backlight cable from the converter board [2].
c Remove the screws that secure the converter board to the computer [3].
d Lift the converter board away from the computer [4].
Installing the converter board
1 Place the convertor board in the slot.
2 Tighten the screws to secure the converter board to the chassis.
3 Connect the converter board cable and display backlight cable to the connectors on the converter board.
4 Install the:
a VESA mount bracket
b power supply unit
c system board shield
d speaker cover
e cable cover
f back cover
g stand
5 Follow the procedure in After working inside your computer.
Removing and installing components
29
