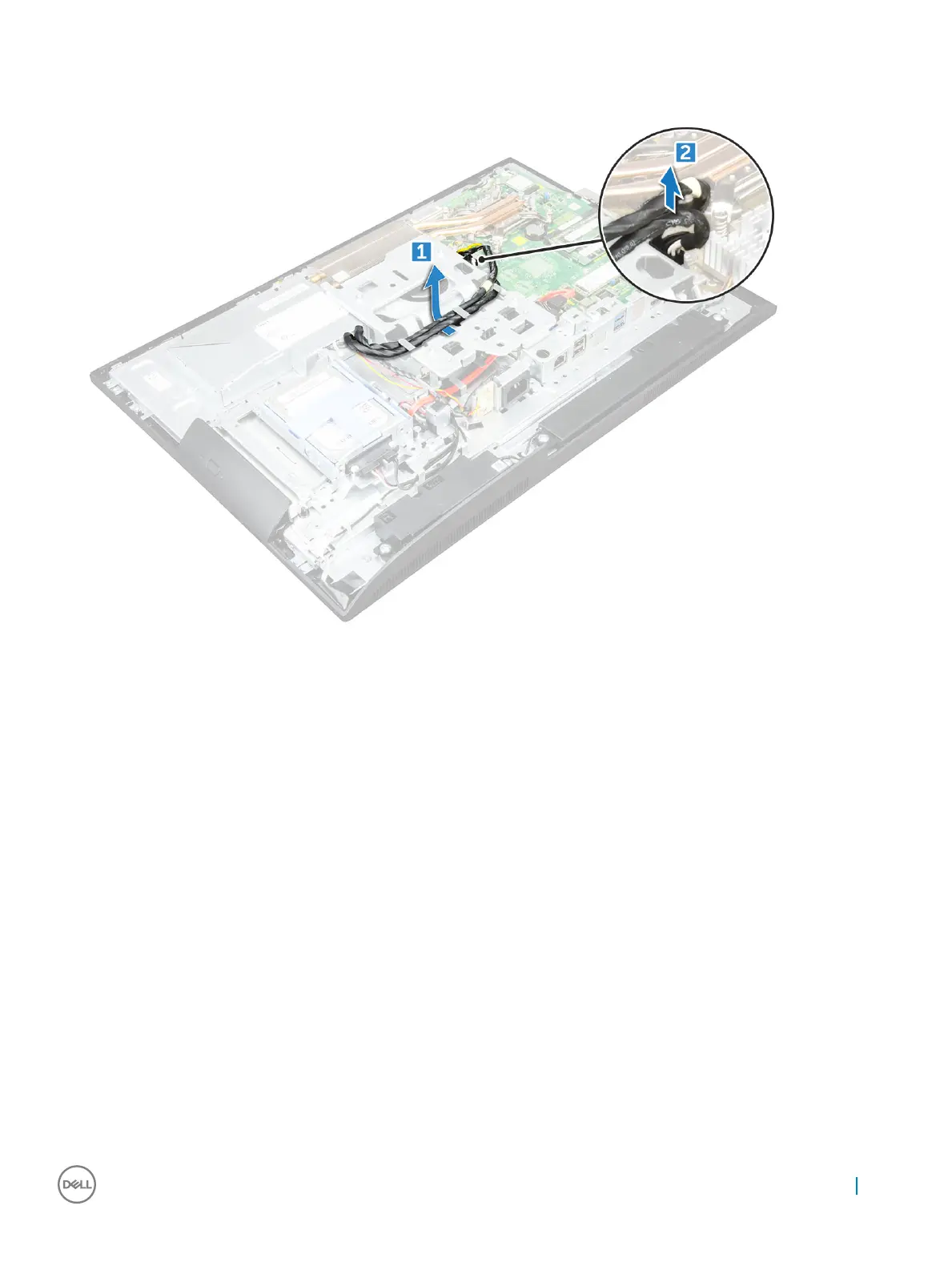

3 To release the PSU cable:
a Unthread the power supply cables from the retention clips in the chassis [1].
b Disconnect the power supply cable from the connector on the system board [2].
4 To release the PSU:
a Remove the screw that secures the power supply socket to the chassis [1].
b Slide the socket to remove it from the computer [2].
Removing and installing components
25
