Removing and installing components
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Recommended tools
The procedures in this document may require the following tools:
● Phillips screwdriver #0
● Phillips screwdriver #1
● Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and
then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.

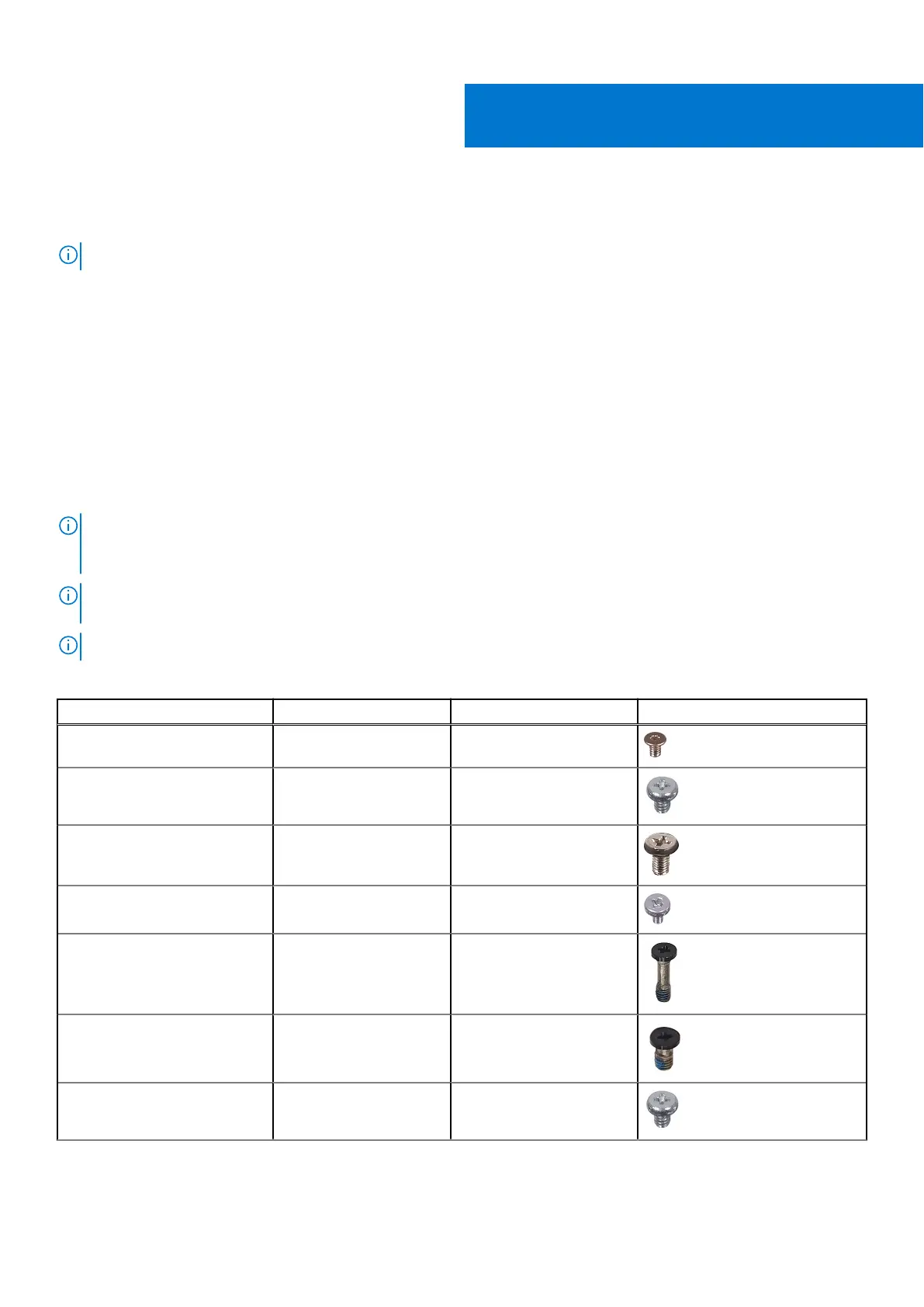

Table 1. Screw list
Component Screw type Quantity Screw image
Solid-state drive M2x3 1
Hard-drive and optical-drive
supporting bracket
#6-32 2
SD-card reader M3x5 1
WLAN card M2x3 1
Processor-fan and heat-sink
assembly
Captive 4
Voltage regulator heat-sink Captive 4
Power-supply unit #6-32 3
2
10 Removing and installing components
