CAUTION: For maximum cooling of the processor, do not touch the heat transfer areas on the heat sink. The
oils in your skin can reduce the heat transfer capability of the thermal grease.
2. Remove the side cover.
About this task

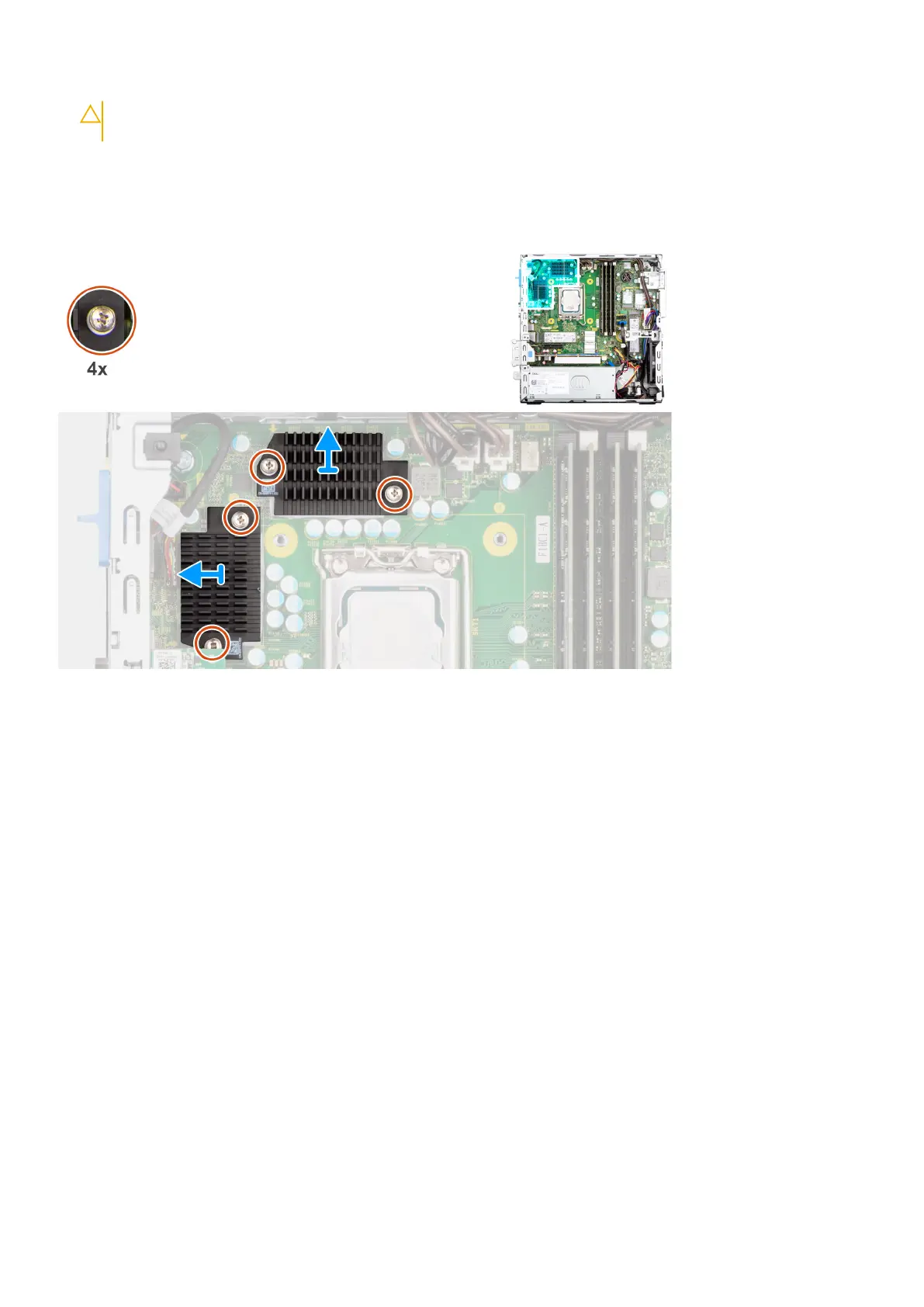

The following image indicates the location of the voltage-regulator heat sink and provide a visual representation of the removal
procedure.
Steps
1. Loosen the four captive screws that secure the voltage-regulator heat sink to the system board.
2. Lift the voltage-regulator heat sink off the system board.
Installing the voltage-regulator heat sink
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the voltage-regulator heat sink and provide a visual representation of the
installation procedure.
Removing and installing components
55
