Steps

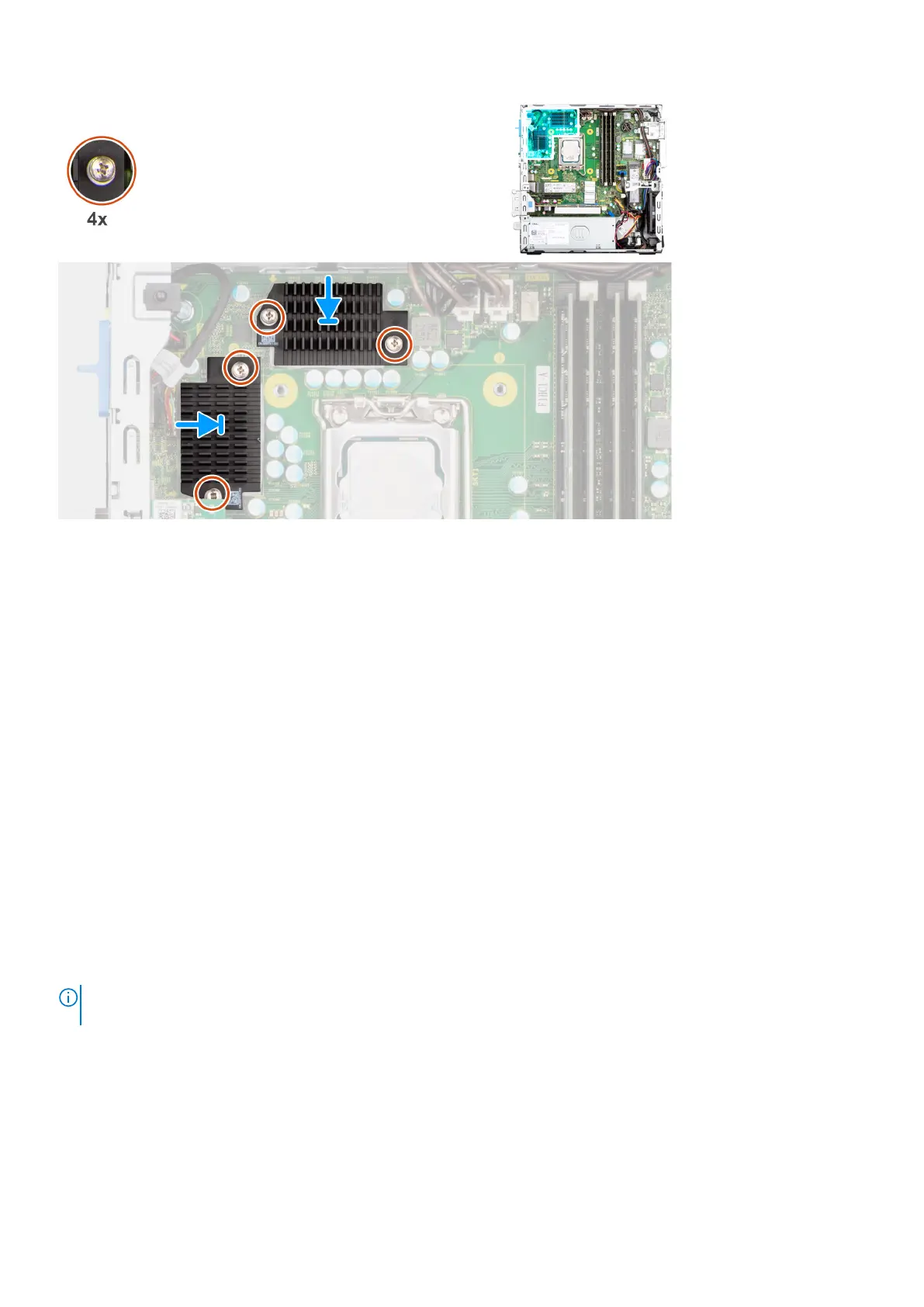

1. Place the voltage-regulator heat sink on the system board.
2. Align the captive screws on the voltage-regulator heat sink to the screw holes on the system board.
3. Tighten the four captive screws that secure the voltage-regulator heat stink to the system board.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
Processor
Removing the processor
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the 2.5-inch hard-drive.
4. Remove the 3.5-inch hard-drive.
5. Remove the heat-sink and fan assembly.
NOTE:
The processor may become hot during normal operation. Allow sufficient time for the heat sink to cool before you
touch it.
About this task
The following images indicate the location of the processor and provide a visual representation of the removal procedure.
56
Removing and installing components
To Next Page
