About this task

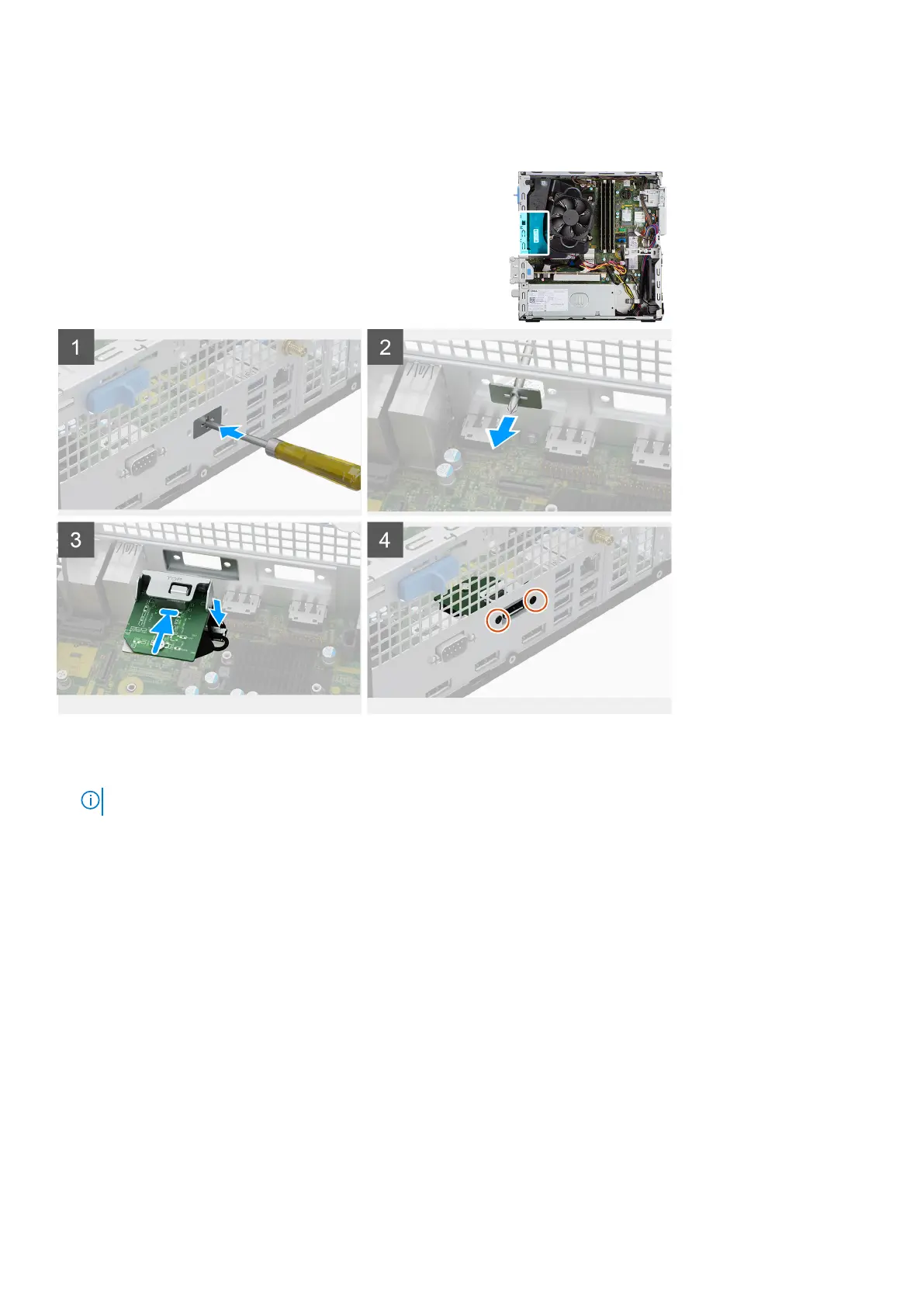

The following images indicate the location of the optional I/O module and provide a visual representation of the installation
procedure.
Steps
1. Using a screwdriver, remove the bracket covering the I/O module slot.
NOTE: This step is only for systems that are being upgraded with the I/O module for the first time.
2. Connect the I/O-module cable to the connector on the system board.
3. Insert the optional I/O module into its slot on the chassis.
4. Install the two screws to secure the I/O module to the chassis.
Next steps
1. Install the heat-sink and fan assembly.
2. Install the side cover.
3. Follow the procedure in after working inside your computer.
Chassis fan
Removing the chassis fan
Prerequisites
1. Follow the procedure in before working inside your computer.
Removing and installing components
65
