3. Follow the procedure in after working inside your computer.
Optional I/O modules (VGA/HDMI/DP/USB Type-C)
Removing optional I/O module
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
4. Remove the heat-sink and fan assembly.
About this task

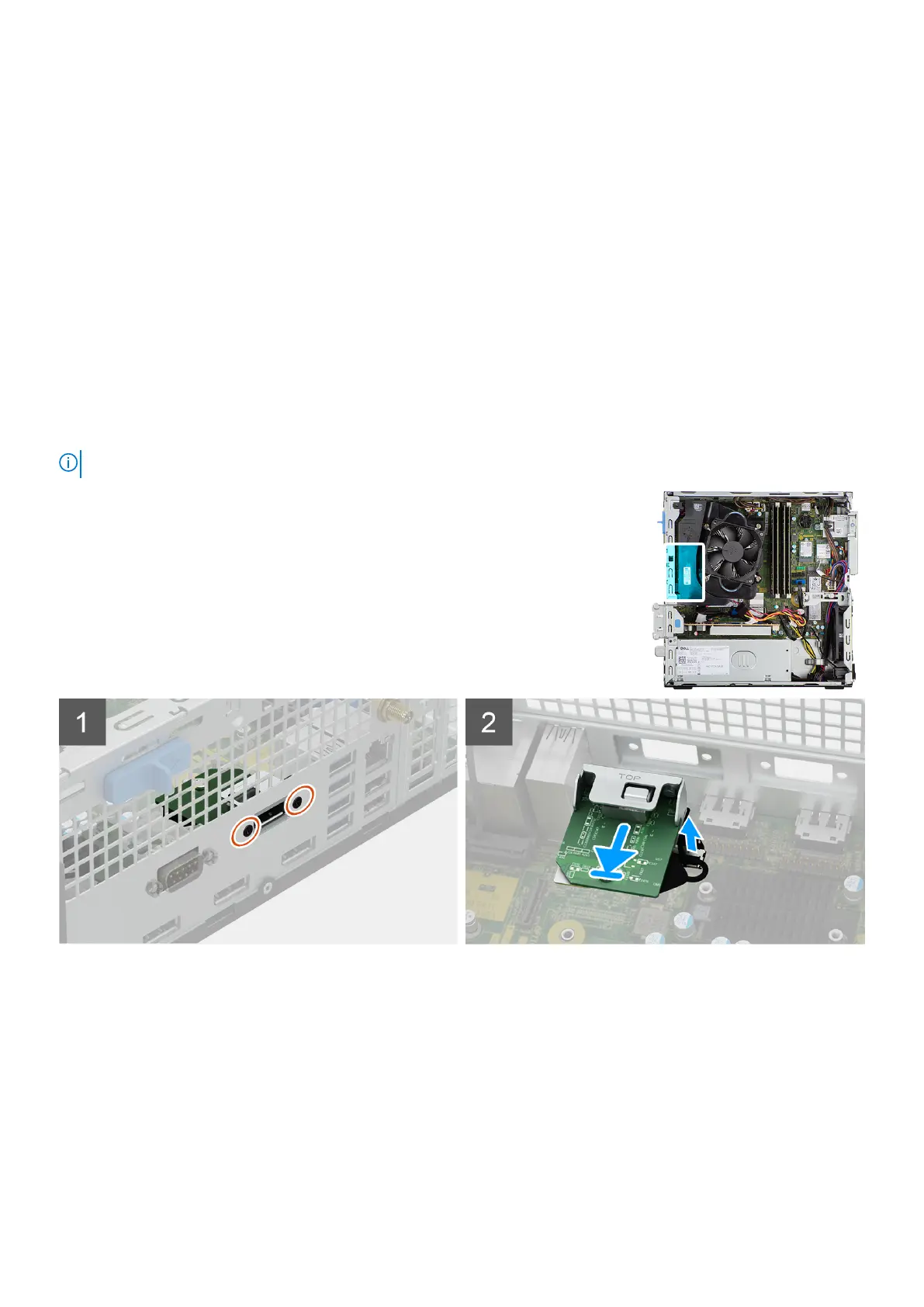

The following images indicate the location of the optional I/O module and provides a visual representation of the removal
procedure.
NOTE: The removal procedure for the VGA/DP/HDMI/USB Type-C optional I/O modules are the same.
Steps
1. Remove the two screws that secure the I/O module to the chassis.
2. Disconnect the I/O-module cable from the connector on the system board.
3. Remove the I/O module from the computer.
Installing optional I/O module
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
64
Removing and installing components
