3. Remove the front bezel.
4. Remove the 2.5-inch hard-drive.
5. Remove the 3.5-inch hard-drive.
6. Remove the hard-drive and optical-drive bracket.
About this task

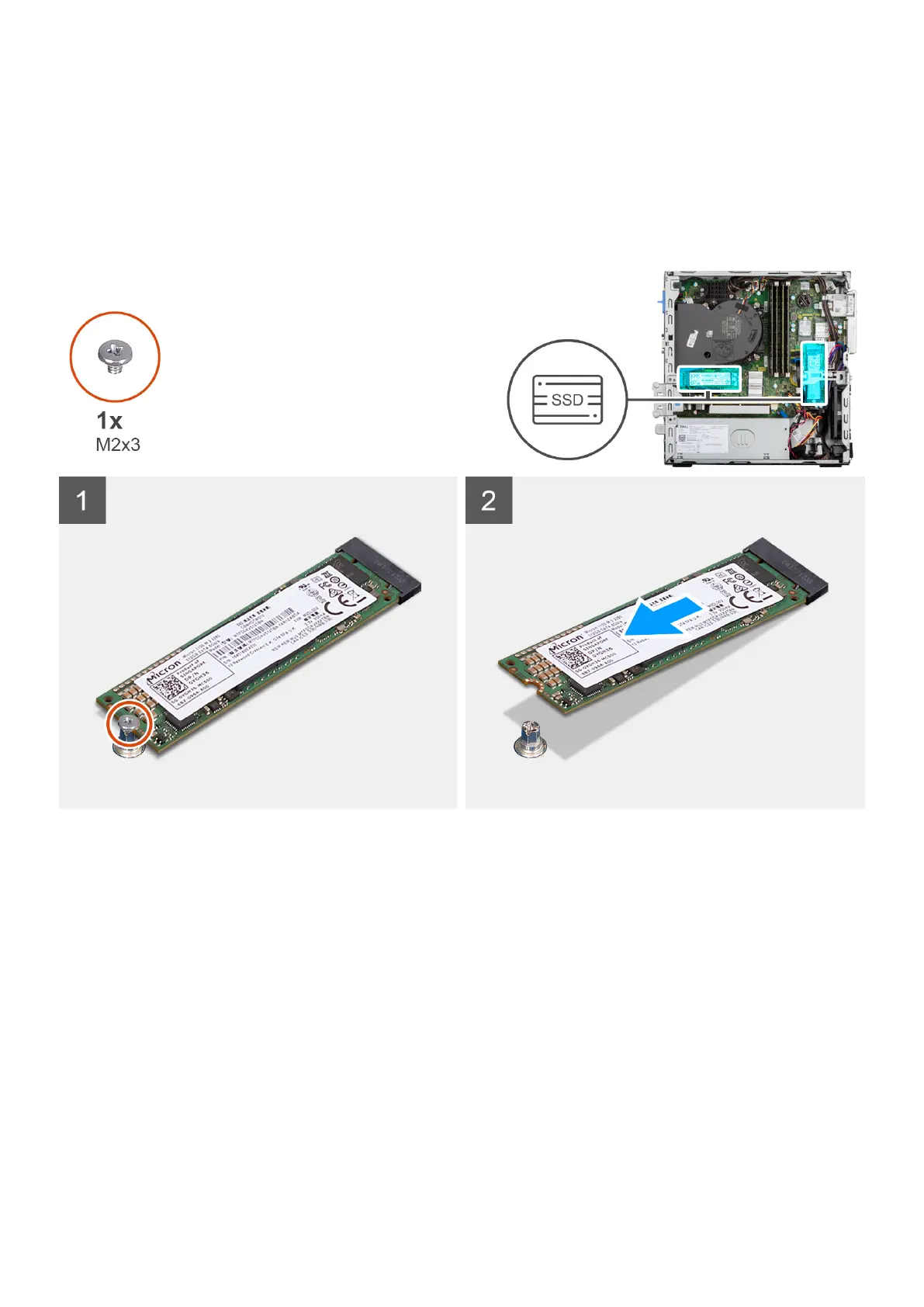

The following images indicate the location of the M.2 2280 solid-state drive and provide a visual representation of the removal
procedure.
Steps
1. Remove the (M2x3) screw that secures the 2280 solid-state drive to the system board.
2. Slide and lift the 2280 solid-state drive from the M.2 card slot on the system board.
Installing the M.2 2280 solid-state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicates the location of the M.2 2280 solid-state drive and provide a visual representation of the
installation procedure.
Removing and installing components
35
