About this task

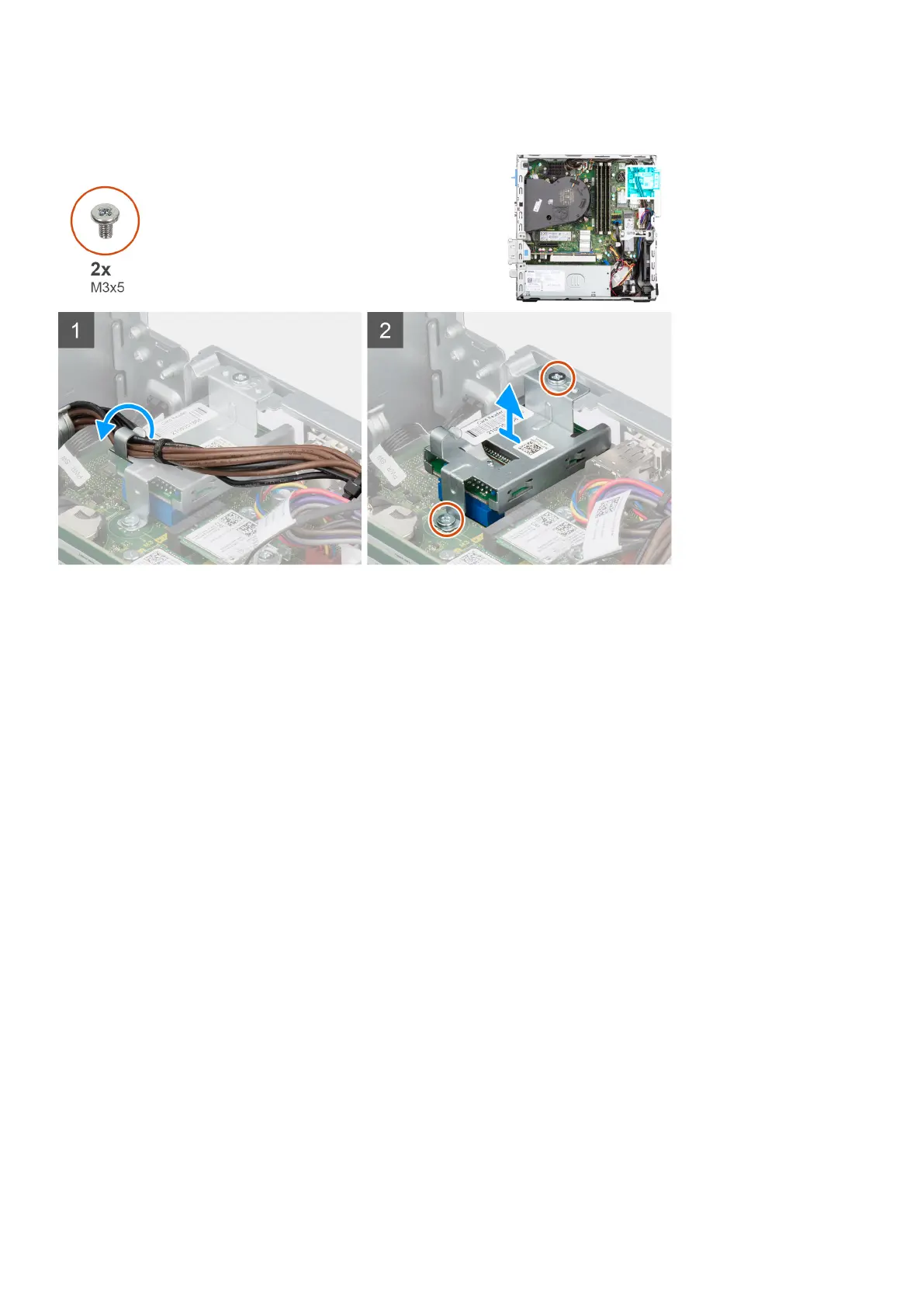

The following images indicate the location of the SD-card reader and provide a visual representation of the removal procedure.
Steps
1. Remove the power-supply cables from the routing guides on the SD-card reader bracket.
2. Remove the two screws (M3x5) that secure the SD-card bracket to the system board and the chassis.
3. Disconnect the SD-card reader from the connector on the system board.
4. Lift and remove the SD-card reader from the system.
Installing the SD-card reader
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the SD-card reader and provide a visual representation of the installation
procedure.
Removing and installing components
39
