6. Remove the hard-drive and optical-drive bracket.
About this task

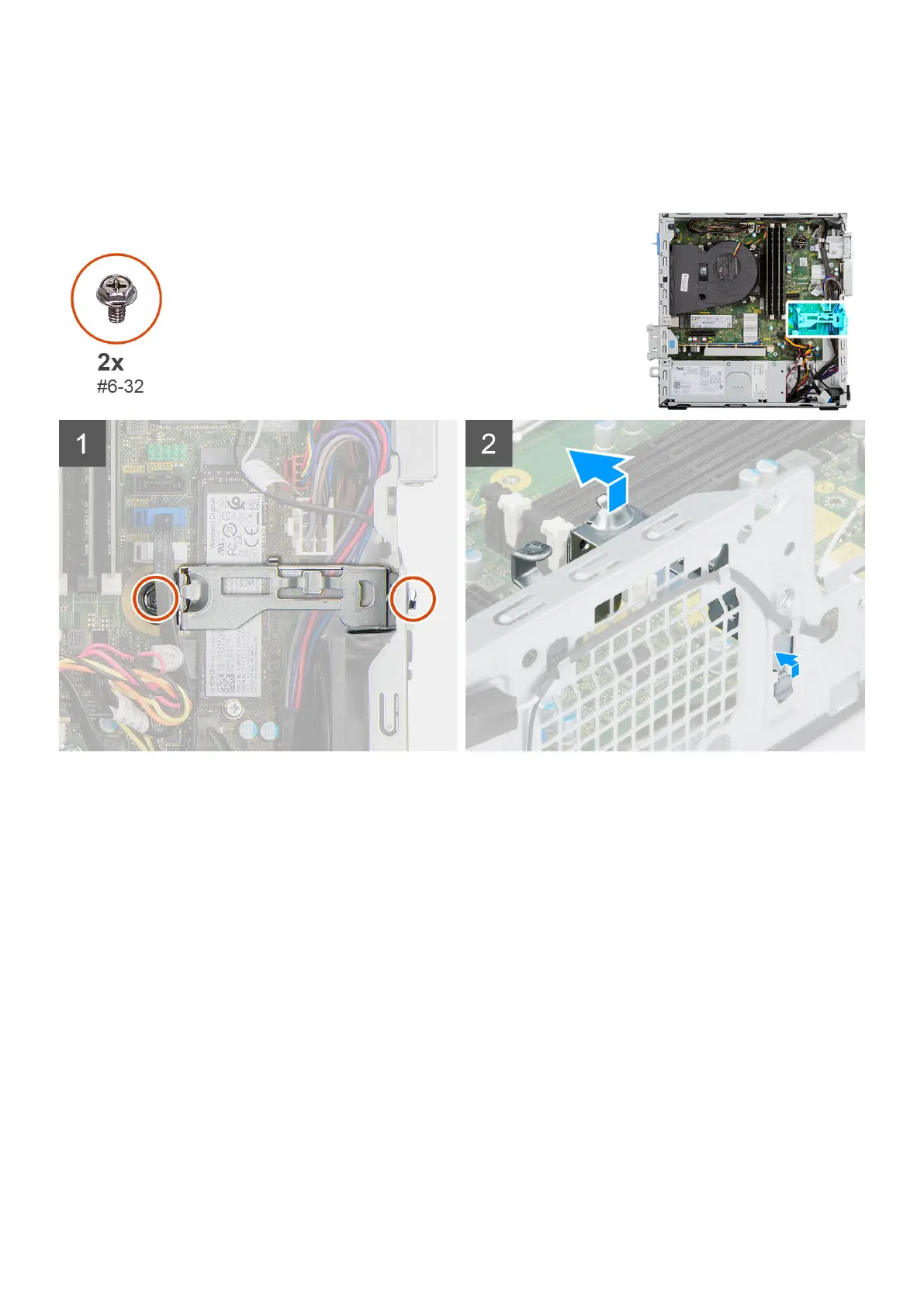

The following images indicate the location of the hard-drive and optical-drive supporting bracket and provide a visual
representation of the removal procedure.
Steps
1. Remove the two (#6-32) screws that secures the bracket to the chassis.
2. Push the bracket to free it from the front side of the chassis.
3. Lift and remove the bracket from the system.
Installing the hard-drive and optical-drive supporting bracket
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the hard-drive and optical-drive supporting bracket and provides a visual
representation of the installation procedure.
Removing and installing components
37
