2. Remove the side cover.
3. Remove the front bezel.
4. Remove the 2.5-inch hard-drive.
5. Remove the 3.5-inch hard-drive.
6. Remove the hard-drive and optical-drive bracket.
About this task

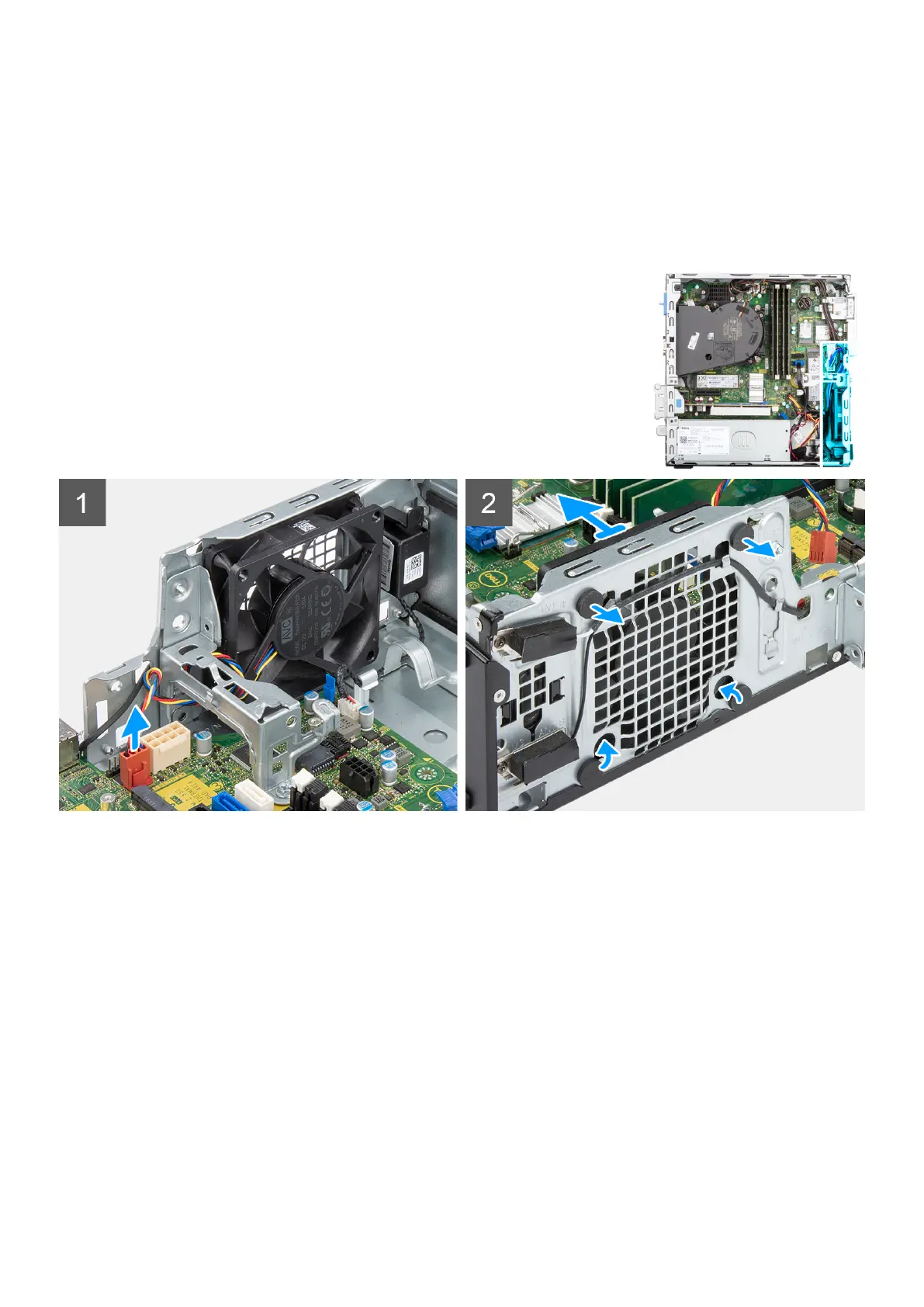

The following image indicates the location of the chassis fan and provide a visual representation of the removal procedure.
Steps
1. Disconnect the chassis fan cable from the connector on the system board.
2. Gently pull the rubber grommets to release the fan from the chassis.
3. Remove the fan off the chassis.
Installing the chassis fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the chassis fan and provide a visual representation of the installation procedure.
66
Removing and installing components
To Next Page
