5. Remove the 3.5-inch hard-drive.
6. Remove the hard-drive and optical-drive cage.
7. Remove the WLAN card.
About this task

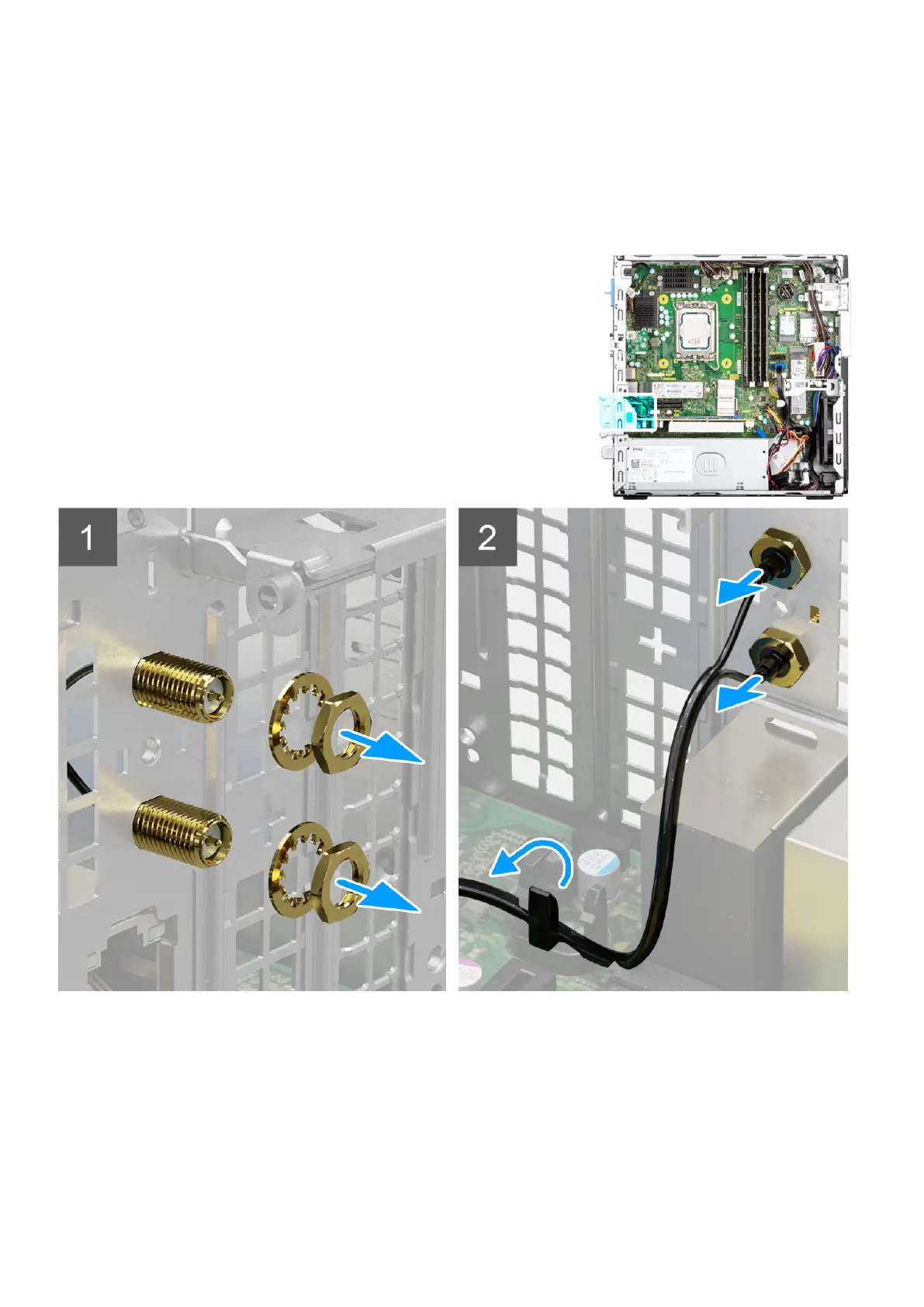

The following images indicate the location of the external WLAN antennas and provide a visual representation of the removal
procedure.
Steps
1. Remove the nut and washer from the two antenna heads.
2. Gently pry and remove the antenna heads from the chassis.
3. Remove the antenna cables from routing point on the system board.
4. Lift and remove the antenna-module from the system.
Removing and installing components
49
