Dell OptiPlex 7000 Small Form Factor User Manual

Steps

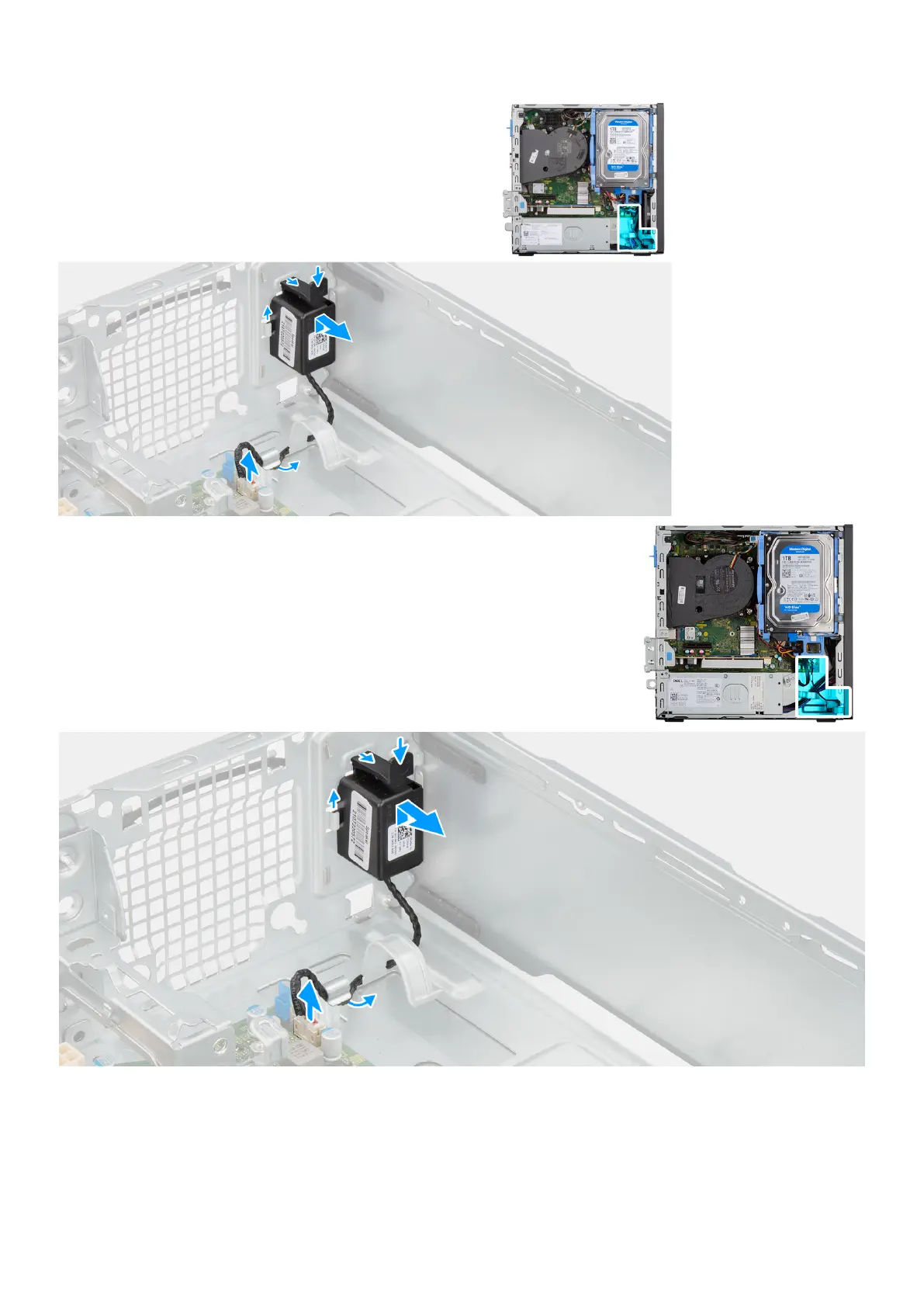

1. Disconnect the speaker cable from the connector on the system board.
2. Unroute the speaker cable from the routing guides on the chassis.
3. Press the tab and slide the speaker along with the cable from the slot on the chassis.
68
Removing and installing components

Dell OptiPlex 7000 Small Form Factor Specifications

General

Brand	Dell
Model	OptiPlex 7000 Small Form Factor
Category	Desktop
Language	English
