11. Remove the solid-state drive at an angle from the connector on the Dell Ultra Speed Drive Gen3 card.
Installing the Dell Ultra Speed Drive Gen3 card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the Dell Ultra Speed Drive Gen3 card and provide a visual representation of the
installation procedure.

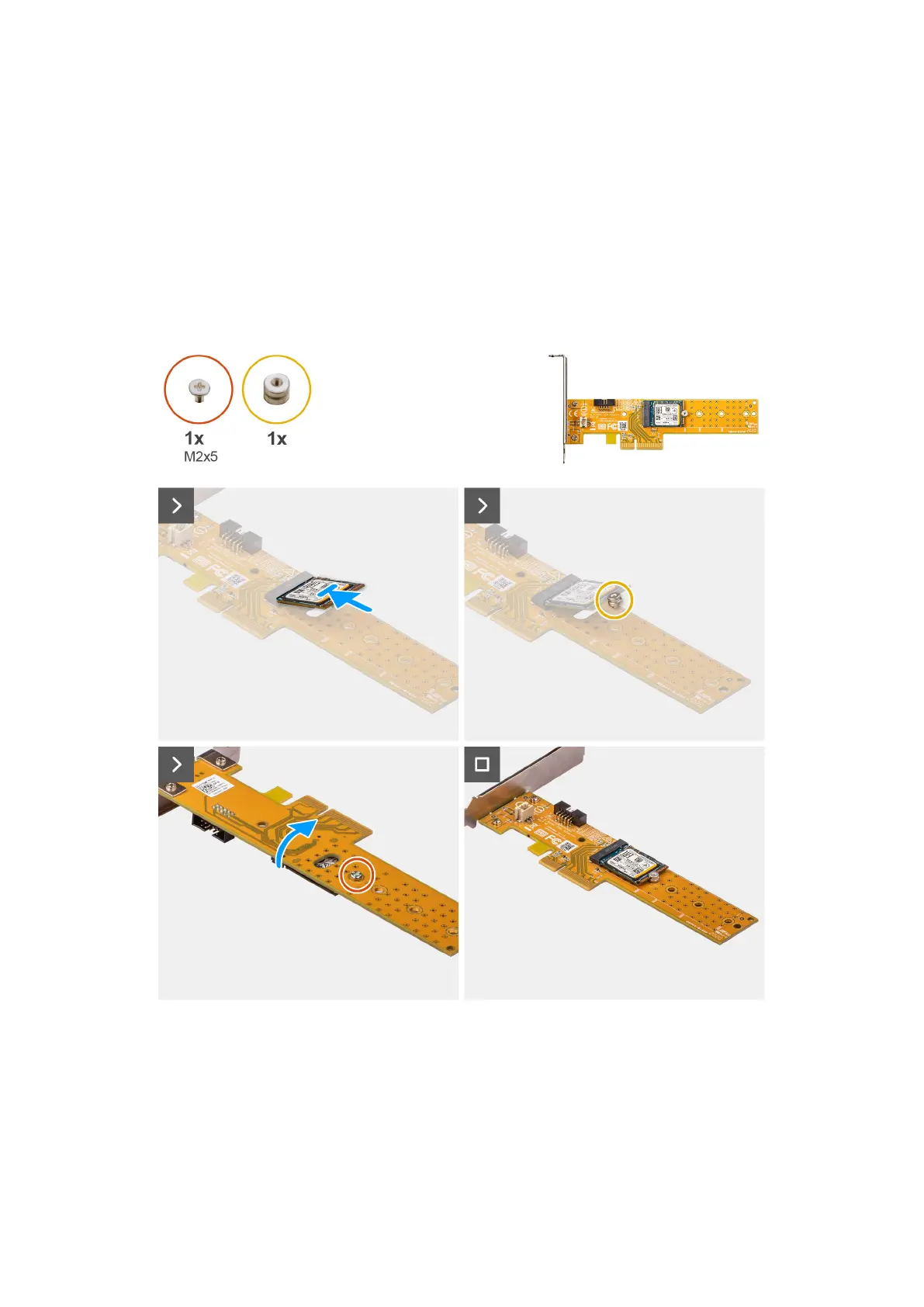

Figure 28. Installing the Dell Ultra Speed Drive Gen3 card with M.2 2230 solid-state drive
Removing and installing Customer Replaceable Units (CRUs)
53
