Removing the speakers
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. battery cover
b. battery
c. base cover
d. hard drive
e. keyboard
f. palmrest

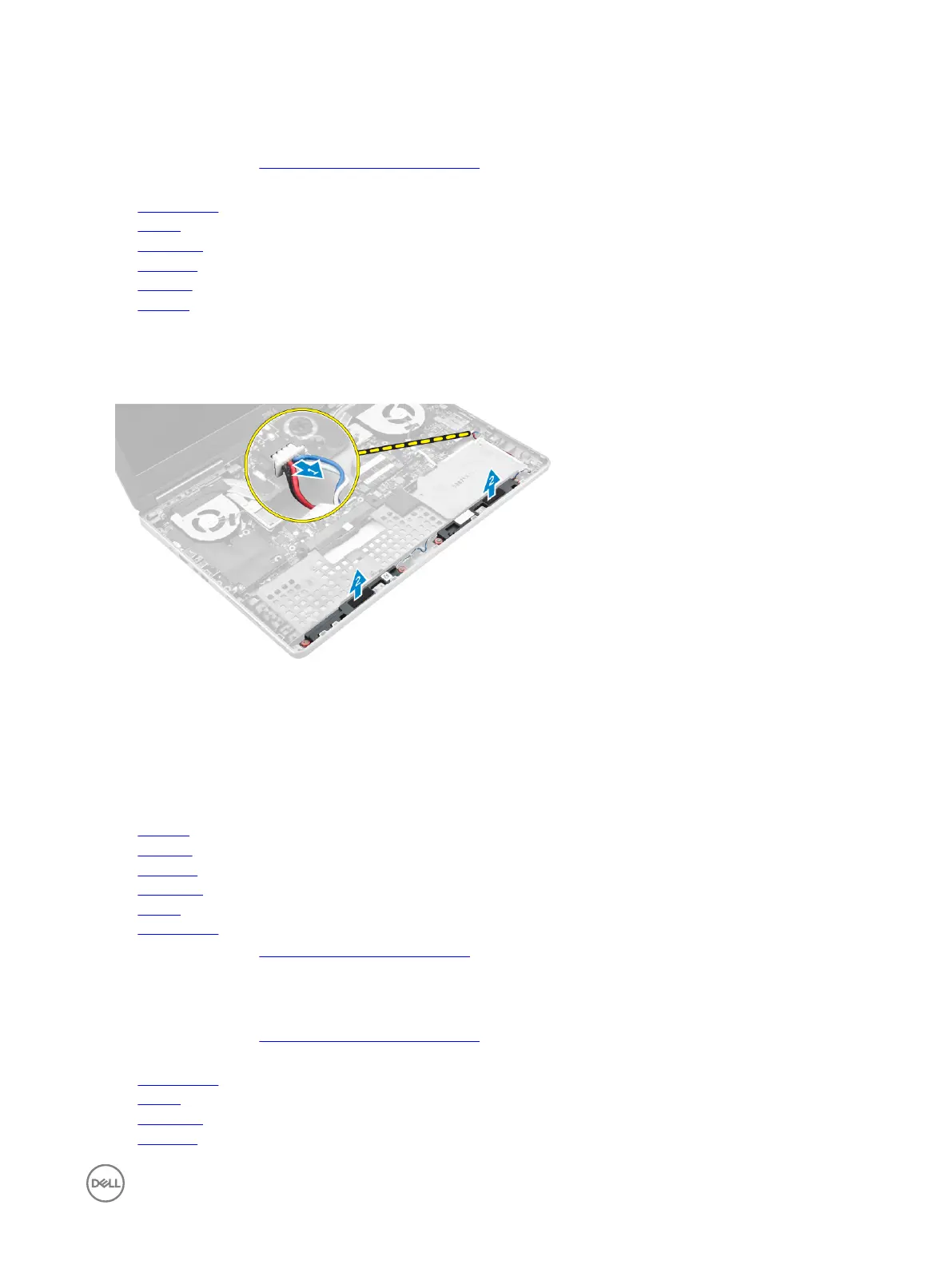

3. Perform the following steps to remove the speaker:
a. Disconnect the speaker cable from the system board [1].
b. Unroute the speaker cable and remove the cable from the routing tabs.
c. Lift the speakers, along with the speaker cable and remove it away from the computer [2].
Installing the speakers
1. Align the speakers along the slots on the computer.
2. Route the speaker cable through the routing tabs on the computer.
3. Connect the speaker cable to the system board.
4. Install the:
a. palmrest
b. keyboard
c. hard drive
d. base cover
e. battery
f. battery cover
5. Follow the procedure in After working inside your computer.
Removing the Input/Output (I/O) board left
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. battery cover
b. battery
c. base cover
d. hard drive
23
