a. SD card
b. battery cover
c. hard drive

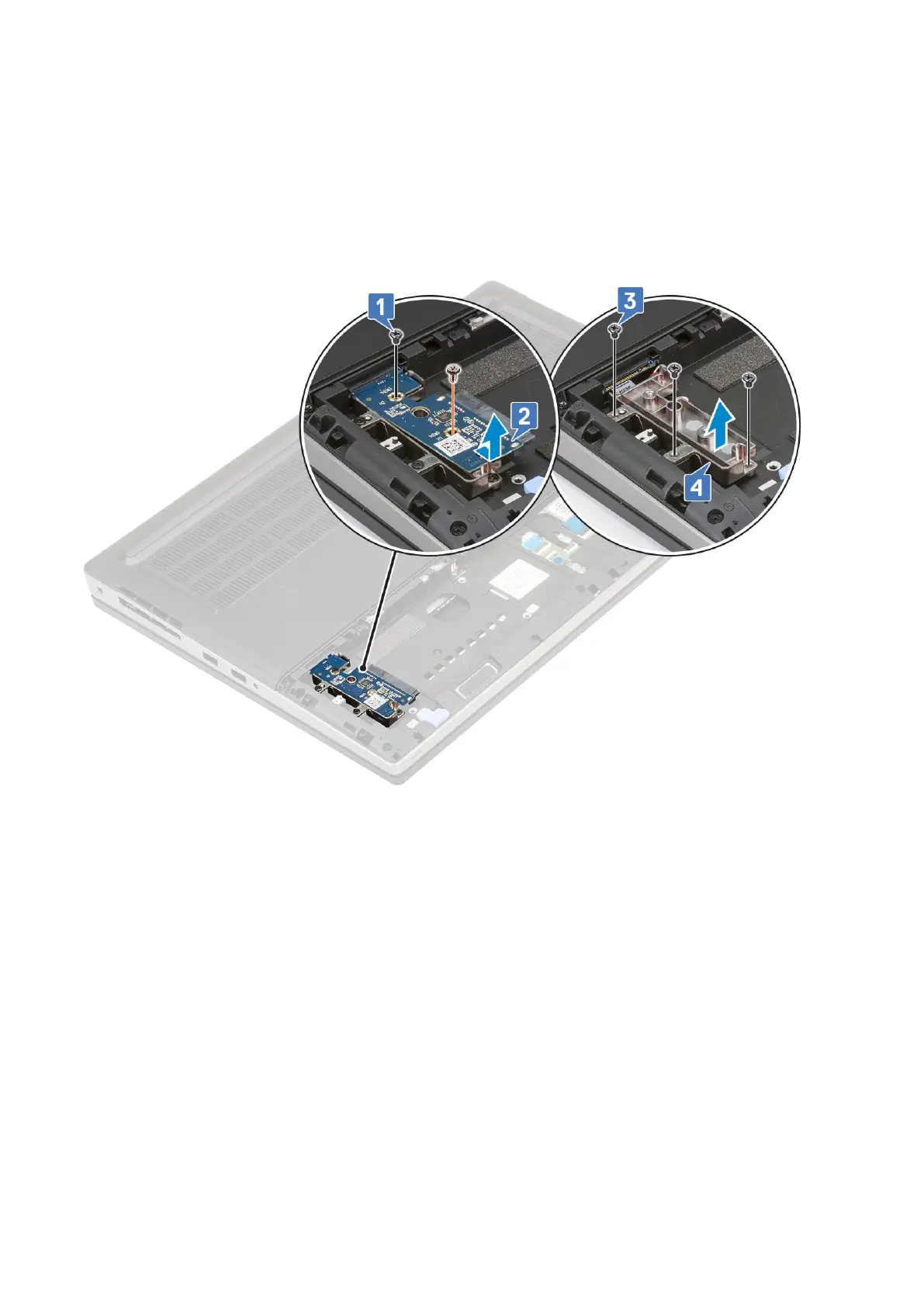

3. To remove the hard drive interposer board:
a. Remove the single (M2.0x3.0) and the single (M2.0x5.0) screw that secures the hard drive interposer board to the hard
drive interposer board holder [1].
b. Remove the hard drive interposer board from the system [2].
c. Remove the 3 (M2.0x3.0) screws that secure the hard drive interposer board holder to the system [3].
d. Remove the hard drive interposer board holder from the system [4].
Installing the hard drive interposer board
1. To install the hard drive interposer board:
a. Align the hard drive interposer board holder into its position on the system [1].
b. Replace the 3 (M2.0x3.0) screws to secure the hard drive interposer board holder to the system [2].
c. Place the hard drive interposer board into its position on the hard drive interposer board holder [3].
d. Replace the single (M2.0x3.0) and the single (M2.0x5.0) screw to secure the hard drive interposer board to the hard
drive interposer board holder [4].
