Installing the WWAN card
1. To install the WWAN card:

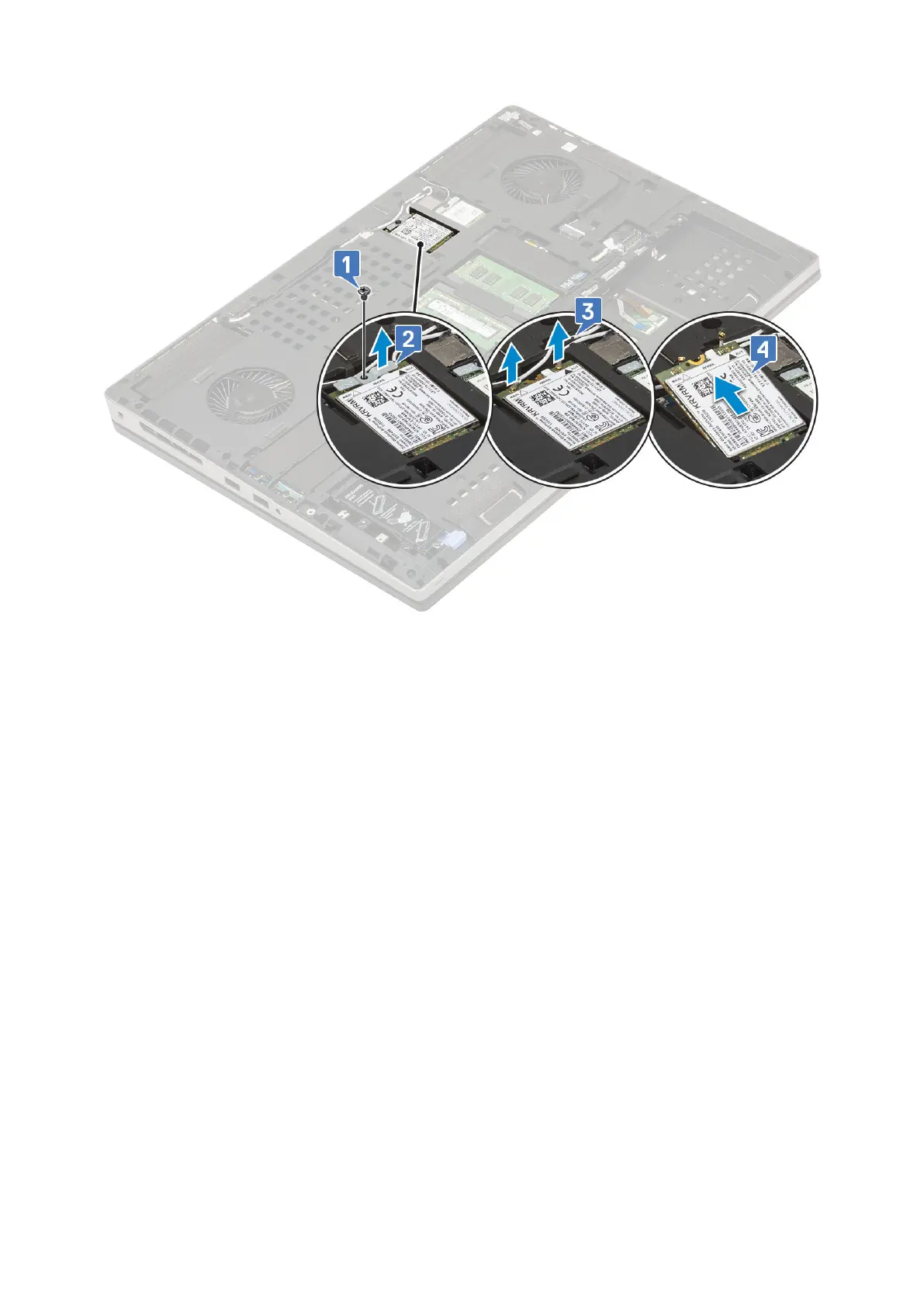

a. Slide the WWAN card to the WWAN card slot on the system board [1].
b. Route the WWAN antenna cables through the routing channel.
c. Connect the antenna cables to the connectors on the WWAN card [2].
d. Align the WWAN metal bracket above the WWAN card and replace the single (M2.0x3.0) screw to secure the WWAN
metal bracket to the system board [3,4].
