Installing the M.2 SSD module

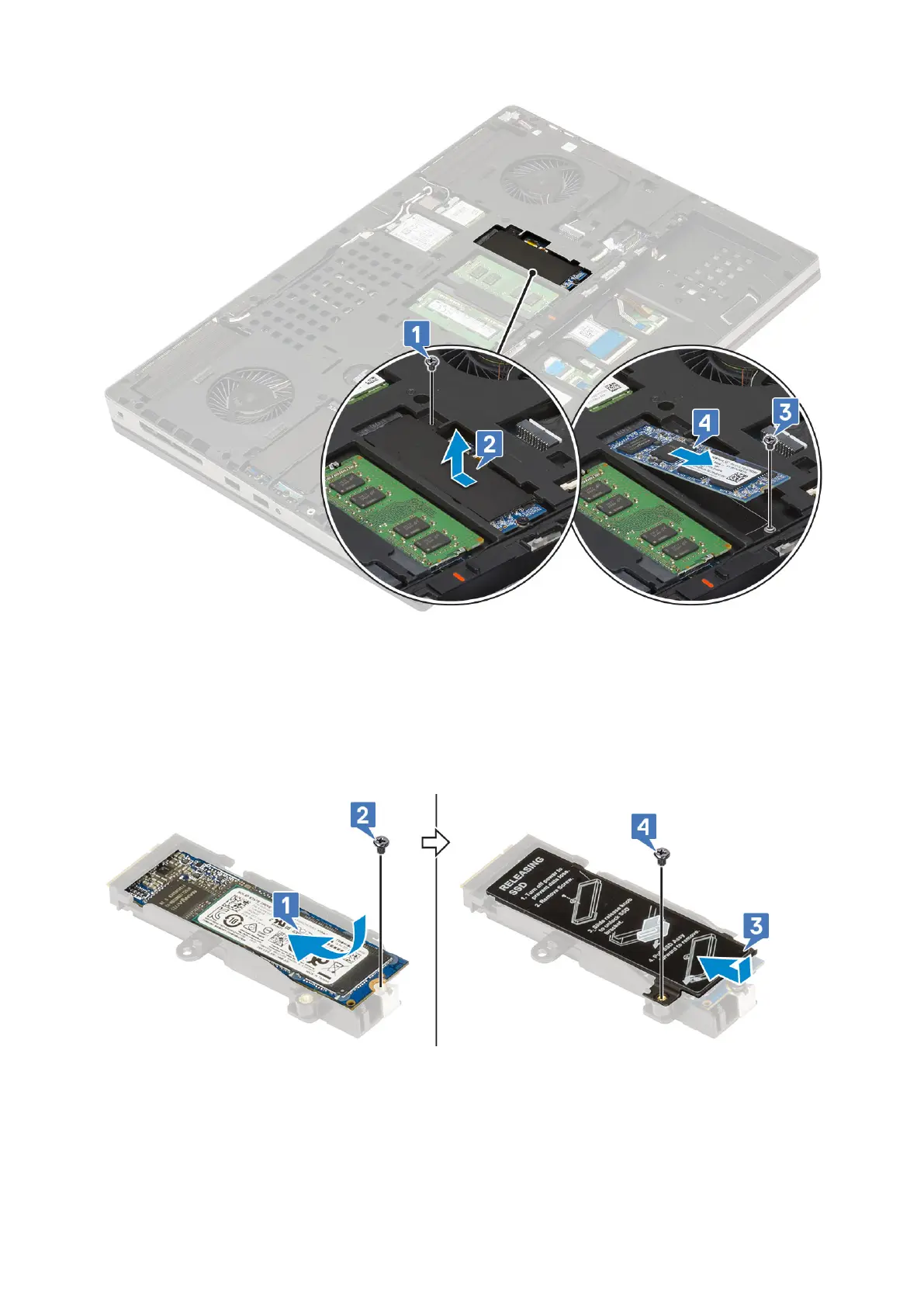

1. To install the M.2 SSD module (Slot 4):
a. Place the M.2 SSD into the slot in the SSD holder [1].
b. Replace the single (M2.0x3.0) screw to secure the M.2 SSD to the SSD holder [2].
c. Place the thermal plate above the M.2 SSD assembly [3].
d. Replace the single (M2.0x3.0) screw to secure the thermal plate to the M.2 SSD assembly [4].
e. Align the M.2 SSD assembly into its slot in the system [1].
f. Slide the release latch to lock the M.2 SSD assembly into its slot [2].
g. Replace the single (M2.0x3.0) screw to secure the M.2 SSD assembly to the system [3].
46
Removing and installing components
