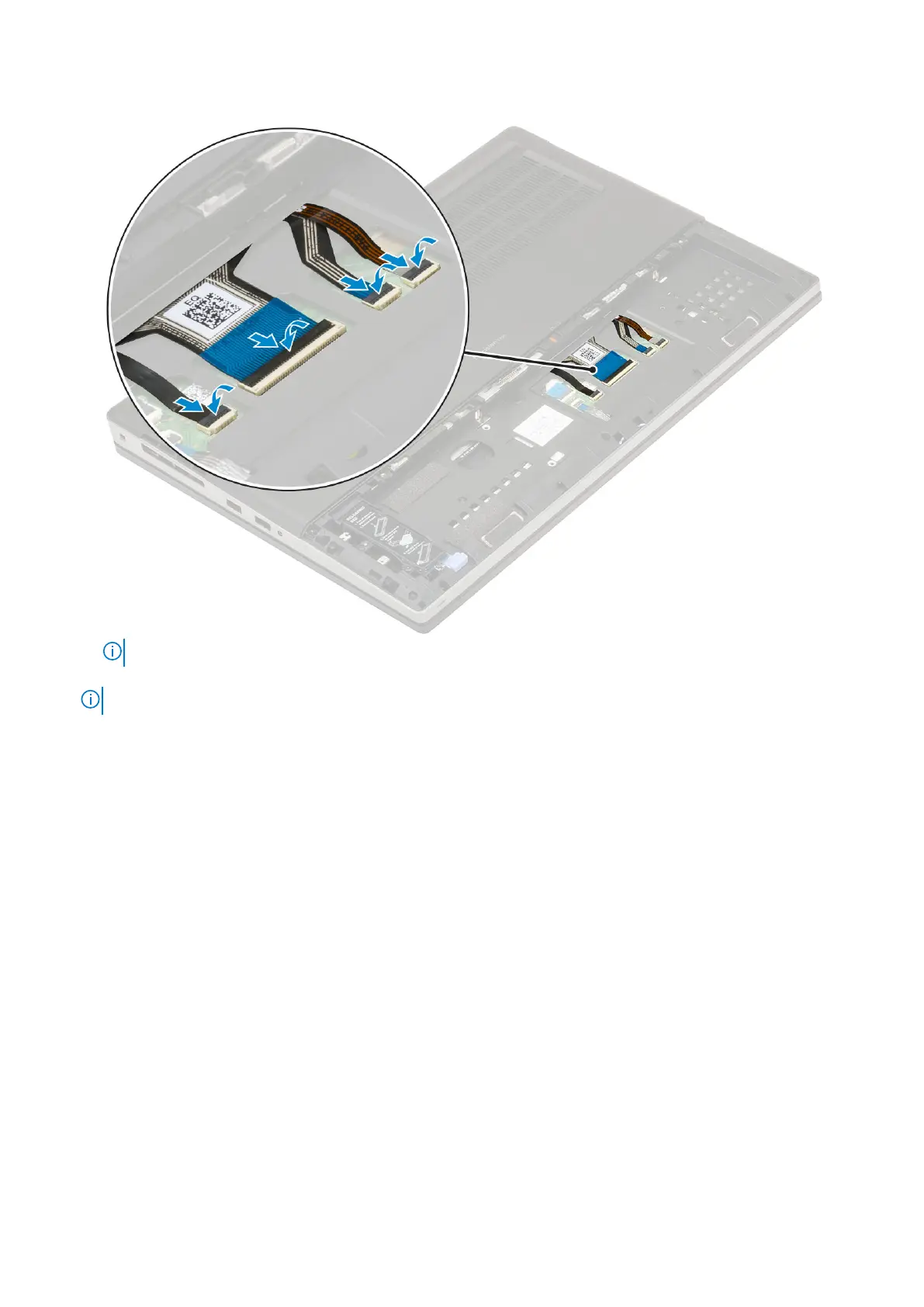

f. Connect the keyboard cable, fingerprint cable and fingerprint button cable to the connectors on the system board.
NOTE: Ensure that you fold the keyboard data cable in perfect alignment.
2.
NOTE: Ensure that you fold the keyboard data cable in perfect alignment.
3. Install the:
a. battery
b. battery cover
c. SD card
4. Follow the procedure in After working inside your computer.
Base cover
Removing the base cover
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. SD card
b. battery cover
c. battery
3. To remove the base cover:
a. Remove the 2 (M2.5X5.0) screws that secure the base cover to the system [1].
b. Slide the rubber feet towards the rear end to disengage the base cover and lift the base cover away from the system [2].
Removing and installing components
33
