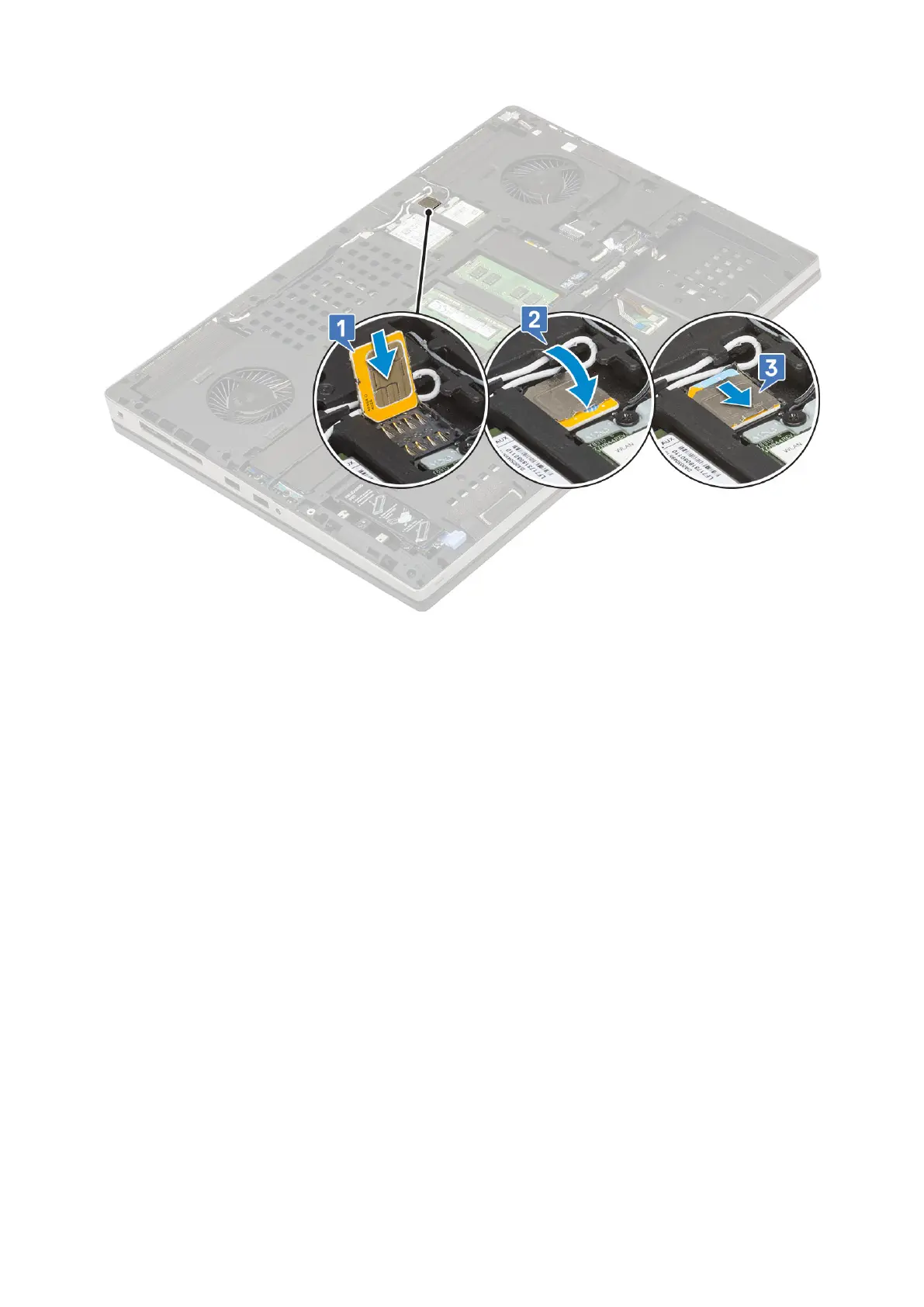

2. Install the:
a. base cover
b. battery
c. battery cover
d. SD card
3. Follow the procedure in After working inside your computer.
Smart card cage
Removing the smart card cage
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. SD card
b. battery cover
c. battery
d. keyboard
e. hard drive
f. base cover
g. palmrest
3. To remove power switch board:
a. Disconnect the smart card cage cable from the connector on the system board [1].
b. Disconnect the touchpad button cable from the connector on the touchpad [2].
c. Pry the smart card cage cable.
d. Remove the 2 (M2.0X3.0) screws that secure the smart card cage to the system [3].
e. Remove the smart card cage from the system [4].
64
Removing and installing components
